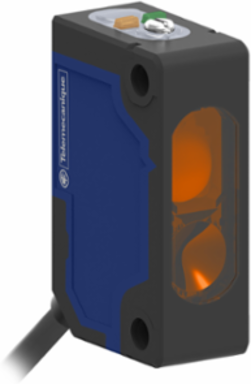

Telemecanique Sensors XUM4APXBL2 Photoelectric sensors XU, miniature, diffuse short, Smax=0.25 m, PNP, cable 2 m
Telemecanique Sensors XUM4APXBL2 Photoelectric sensors XU, miniature, diffuse short, Smax=0.25 m, PNP, cable 2 m
- MPN: XUM4APXBL2
- PPN: TES-XUM4APXBL2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$163.90/ EA
Description
This product is part of the XUM range, an offer of miniature photoelectric sensors. This reference correspond to a diffuse system sensor with adjustable sensitivity, Light ON/Dark ON (NC/NO) function and a PNP solid-state digital output. It features a 2 metre long PVC cable (3 wires). It is a photoelectric cell with a rated supply voltage of 12V to 24VDC and protection against reverse polarity. This miniature and robust sensor allows quick installation in compact spaces of even harsh industrial applications. It provides operating sensing distance of 0.17m and maximum sensing distance of 0.255m. It is an IP65 and IP67 rated product, operating in an ambiant air temperature from -30°C to +55°C (-22°F to +131°F). This sensor is suitable for harsh industrial environments. This photocell features a compact and robust housing. The casing is made of plastic (PBT) and the lens is made of PMMA. Its dimensions are 10.8mm (width) x 19.5mm (depth) x 31.5mm (height) and weighs 0.063kg. It is ideal for material handling, packaging, labelling and assembly industries. This product is certified by CE, cULus and UKCA. Dedicated reflectors, fixing brackets and cabling acessories can be purchased separately. 2 potentiometers help to configure the sensing distance and the output functions. The XUM range is for non-contact sensing up to 30metres of objects of any shape and any type.
Specifications
Environment
- Product Certifications
- cULus || CE || UKCA
- Vibration Resistance
- 9 gn +/- 1.5 mm 10-500 Hz)for every axis IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529 || IP65 IEC 60529
Ambient Air Temperature For Operation-30-55 °C
Shock Resistance100 gn 11 ms) for every axis IEC 60068-2-27
Relative Humidity35-95 %
Immunity To Ambient Light40000 lux sunlight || 10000 lux incandescent light
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationX
Complementary
- Current Consumption
- 20 mA no-load
- Switching Frequency
- <= 1000 Hz
- Status Led
- stability 1 LED green) || output state 1 LED orange)
- Lens Material
- PMMA
- Net Weight
- 0.063 kg
- Maximum Delay First Up
- 100 ms
- Supply Voltage Limits
- 10-30 V DC
- Wire Insulation Material
- PVC
- Width
- 10 mm
- Depth
- 20 mm
Height33 mm
Maximum Delay Response0.5 ms
Setting-Upsensitivity by potentiometer
Maximum Voltage Drop<2 V
Maximum Delay Recovery0.5 ms
Maximum Sensing Distance0.25 m
Switching Capacity In Ma<= 100 mA overload and short-circuit protection
Enclosure MaterialPBT
Output Typesolid state
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared diffuse
- Material
- plastic
- Series Name
- general purpose single mode
- Sensor Design
- miniature
- Electronic Sensor Type
- photo-electric sensor
Discrete Output TypePNP
Type Of Output Signaldiscrete
Cable Length2 m
Sensor NameXUM
Wiring Technique3-wire
Detection Systemdiffuse
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance0.17-0.17 m
