Schneider Electric XB5AS84425 Emergency stop switching off, Harmony XB5, grey plastic, red mushroom 40mm, 22mm, trigger turn to release, 1NC, push in

  • MPN: XB5AS84425
  • PPN: SCH-XB5AS84425

CAD

$51.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

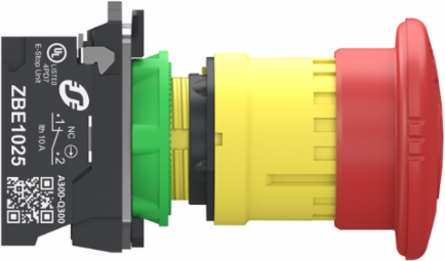

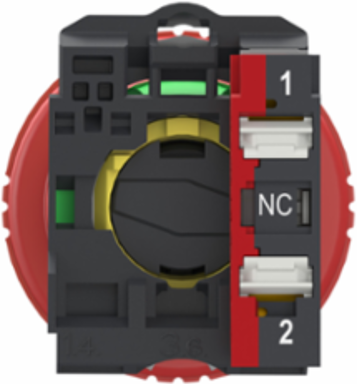

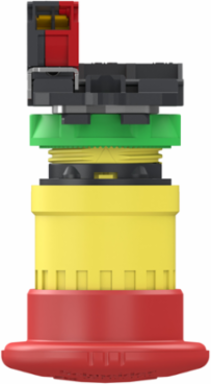

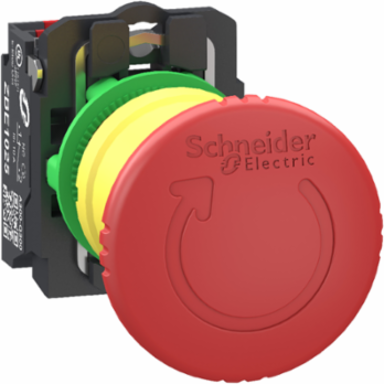

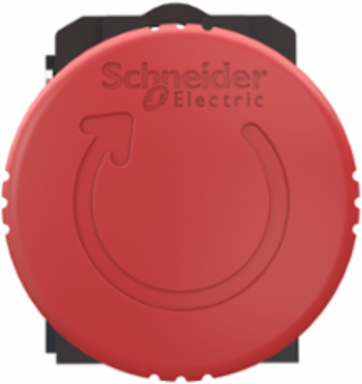

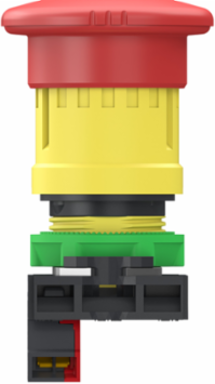

This Harmony XB5 emergency stop/shutdown 40mm mushroom head red push button operates with a turn to release mechanism. It is also called EMS (Emergency Machine Stop) and EMO (Emergency Off). It features 1 NC contact with slow break operation. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from plastic, it weighs 55g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, United States

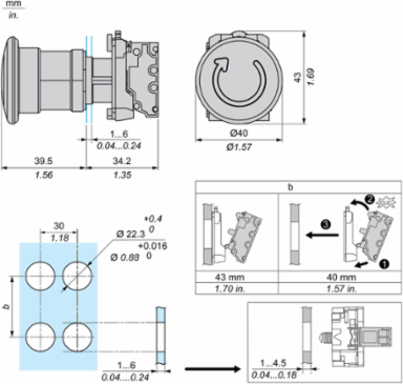

Depth73.2 mm

Physical Attributes

Cap Operator Or Lens Color
red

Complementary Attributes

Ie Rated Operational Current
6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
no, 0
Product Or Component Type
emergency stop push-button, emergency switching off push-button
Terminals Description Iso N 1
(11-12)NC, (11-12)NC
Connections Terminals
push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Carbon Footprint Of The Distribution Phase A4
0.007146391986062717, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0 kg CO2 eq., 0.019062584732340827
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0.1 kg CO2 eq., 0.060358
Local Data Status
Publishable
Pre Comm Date
2024-05-23
Stocking Flag
N
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2308012EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2201
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Bezel Material
dark grey plastic
Contact Operation
slow-break
Contacts Usage
standard contacts
Fixing Collar Material
plastic
Mechanical Durability
10000000 cycles
Operating Force
2.25 N
Overvoltage Category
class II conforming to IEC 60536
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
Harmony XB5
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity
1
Short Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Sustainable Packaging
No
Type Of Operator
trigger action and mechanical latching
Cap Operator Or Lens Color
red
Warranty In Months
18
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
XB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; APAC
Recyclability Potential, In %
21
Width Nominal
40 mm
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
1.5656
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.319
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Travel1.217 mm NC changing electrical state), 4.3 mm total travel)
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.09649870921761167, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.44082659961989235
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameXB5
Head Typestandard
Mounting Diameter22.5 mm
Operator Profilered mushroom Ø 40 mm, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Protective TreatmentTH
Resetturn to release
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ith Conventional Free Air Thermal Current10 A IEC 60947-5-1
Pep CodeENVPEP2308012_V1
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
Height Nominal43 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.319
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]0.2466
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]0.2466

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.6238922855559075
Environmental Disclosure
ENVPEP2308012_V1
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2308012_V1
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
emergency stop push-button, emergency switching off push-button
