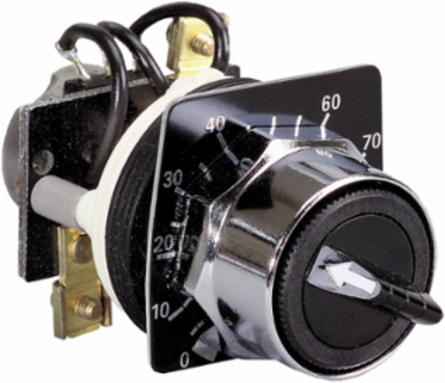

Schneider Electric 9001K2106 Harmony Potentiometer 30mm 2.5kOhm Metal Variable Resistor

MPN: 9001K2106
UPC: 785901528500
PPN: SCH-9001K2106

$369.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Harmony 9001K range, an offer of potentiometers. This potentiometer is supplied with an operator and dial plate. The power rating of this variable resistor is 2W, resistance rating is 2.5k Ohms and maximum voltage is 300V AC. It has 1 flush pushbutton, black 1 normally open, white down arrow marking and 1 flush pushbutton, white 1 normally open, black up arrow marking. It is furnished with solder terminals for electrical connection. It is a NEMA 4/13 rated product. The legend plate is made of metal. Its dimensions are 42mm (width) x 89mm (depth). It is suitable for use in automotive, machine tools, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, metallurgy and industrial applications. It is easily installed into 1/16inch to 3/16inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Diameter	30 mm
Product Or Component Type	potentiometer
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colour	black
Package Weight(Lbs)	125.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-03-25
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	metal
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony 9001K
Sustainable Packaging	Yes
Pep Code	ENVPEP2503027EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8533408070

Environment Attributes Main

Nema Degree Of Protection	NEMA 4, NEMA 13
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP65/IP66
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
