Schneider Electric METSEPM5RD Power Logic PM5000 Remote Display 96 x 96 mm Monochrome LCD IP52

MPN: METSEPM5RD
PPN: SCH-METSEPM5RD
UNSPSC: 83101808

$703.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

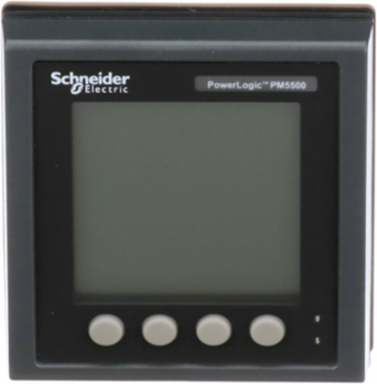

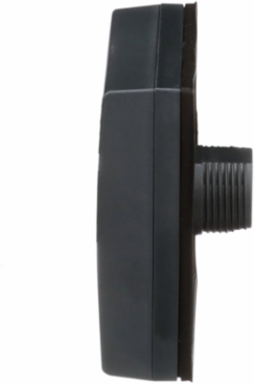

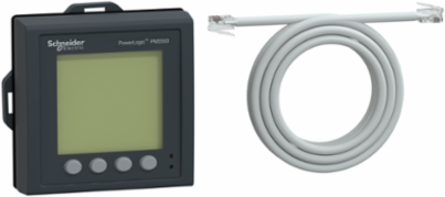

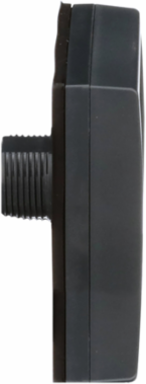

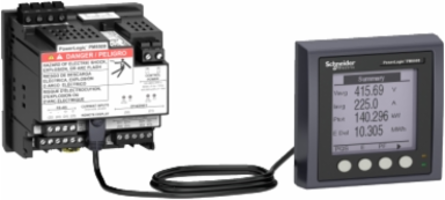

Optional remote display kit for the PowerLogic PM5000 DIN mount variant. 96mm by 96mm monochrome graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage and current. Viewable area: backlight LCD, 128 pixels by 128 pixels. This display is installed flush mounted, an enclosure door for example. Ingress Protection IP52 rating.

Features

Monochrome display with simple navigation options
Easy installation
Simple setup

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India, United States

Weight	460 g

Physical Attributes

Display Size	67 x 62.5 mm
Projecting Depth	27 mm

Embedding Depth	21 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Information Displayed	power, energy consumption, harmonic distortion, frequency, voltage, current
Carbon Footprint Of The Distribution Phase A4	0.1426843681485142, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.02680845748277467, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	232 kg CO2 eq., 232.1383781494962
Local Publishable Date	2025-07-24
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	Yes
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	4 x push-button
Display Resolution	128 x 128 pixels
Energy Efficiency Optimized	False
Mounting Mode	flush-mounted
Product Availability	Stock - Normally stocked in distribution facility
Range	PowerLogic
Software Version	v6.2.3
Total Lifecycle Carbon Footprint	258 kg CO2 eq.
Display Color	monochrome
Data Source	referent product
Width Nominal	96 mm
Customs Code	8531200020
Packaging Weight In G	160.5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Messages Display Capacity	6 lines, graphic objects (bargraph, button, light...)
Carbon Footprint Of The End Of Life Phase C1 To C4	0.7 kg CO2 eq., 0.7066134018910608
Carbon Footprint Of The Manufacturing Phase A1 To A3	25 kg CO2 eq., 25.17765245354826
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1412029_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2009
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard

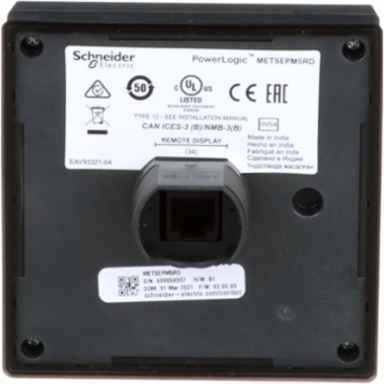

Connector Type	RJ45
Device Application	human-machine dialogue application
Display Type	Backlit LCD
Local Signalling	communication LED Green)programming indication LED amber)
Mounting Support	framework remote display
Product Or Component Type	remote display
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	96 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	The PowerLogic™ PM5RD is designed as communication module for use in both energy management systems and building management systems. It provides the measurement capabilities needed to allocate energy usage, perform tenant metering and subbilling, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality of the electrical network during the lifetime of 10 years.
Functional Unit Unit	Unit
Recyclability Potential In %	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1412029_V2
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % 37-37 °C
Pep Verification Date	2025-03-18
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	258.19213683056677
Environmental Disclosure	ENVPEP1412029EN
Ip Degree Of Protection	IP52 IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1412029EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
