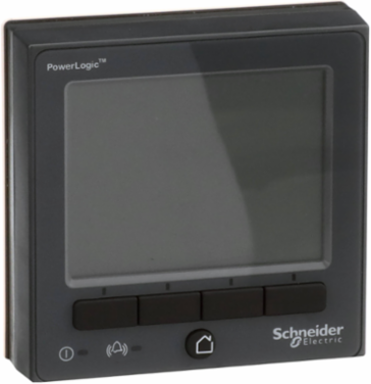

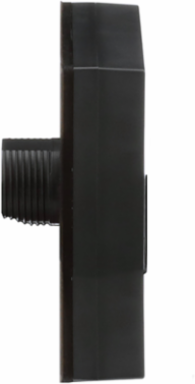

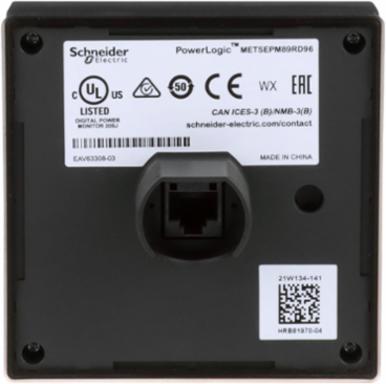

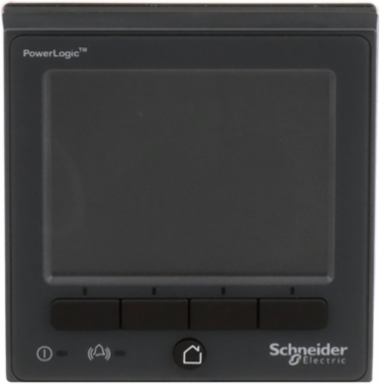

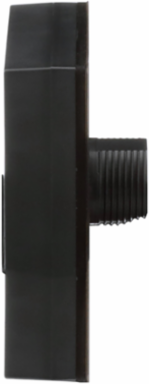

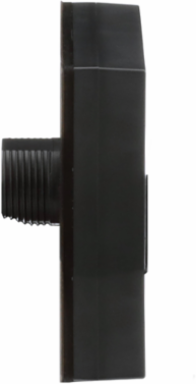

Schneider Electric METSEPM89RD96 PM8000 Remote Display 3.5 Inch Color TFT LCD, 96x96mm
- MPN: METSEPM89RD96
- PPN: SCH-METSEPM89RD96
CAD
$747.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, China, Germany, France, Indonesia, Mexico, Singapore, United States
Physical Attributes
- Display Size
- 3.5 inch
Projecting Depth27 mm
Important Information Attributes
- Information Displayed
- energy consumption, voltage, power, harmonic distortion, frequency, current, system alarm, I/O status
- Provided Equipment
- Mounting Hardware, cable 3 m
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.713763496081493
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.90672472506873
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310106EN&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
- Local Publishable Date
- 2025-10-18
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Connector Type
- RJ45
- Device Application
- human-machine dialogue application
- Display Type
- colour TFT LCD
- Messages Display Capacity
- graphic objects (bargraph, button, light...)
- Mounting Support
- framework remote display
- Product Or Component Type
- remote display
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2025-04
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To monitor and manage power quality and energy consumption, displaying parameters such as power, energy consumption, harmonics, frequency, voltage, current, alarms, and input/output status, with a consumption of 2.4 Watts in active mode (10% runtime) and 3.2 Watts in standby mode 90% time repartition, resulting in a total energy consumption of 273.312 kWh over 10 years, in accordance with the relevant standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 273.312
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 96 mm
- Certificate Agency
- IEC
- Package Weight(Lbs)
- 500.000 g
- Warranty (In Months)
- 18
Local Signallingstatus LED Green), alarm LED Red)
Carbon Footprint Of The Distribution Phase [A4]0.4921037008803015, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.30722461409265117, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]145 kg CO2 eq., 144.5951585123966
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406040EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2045
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Control Type5 x push-button
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Mounting Modeflush-mounted
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Software Versionv6.3.2
Total Lifecycle Carbon Footprint157 kg CO2 eq.
Pep CodeENVPEP1406040EN
Pep Verification Date2025-10-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %10
Width Nominal96 mm
Nbr. Of Units In Pkg.1
Take-backNo
Materials For Energy Recovery (Kg) Installation [A5]0.1938
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 157.0149750485198
- Environmental Disclosure
- ENVPEP1406040EN
- Ip Degree Of Protection
- IP54 IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1406040EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1406040EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 %
Pep Verification Date2025-10-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Provided Equipment
- Mounting Hardware, cable 3 m
Product Or Component Typeremote display
ETIM
- ETIM 8
- EC000783
ETIM 9EC000783
