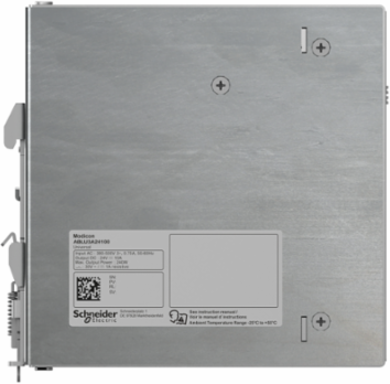

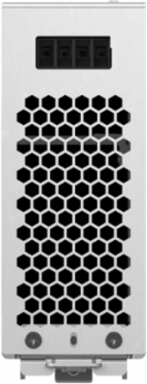

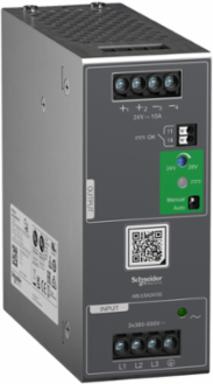

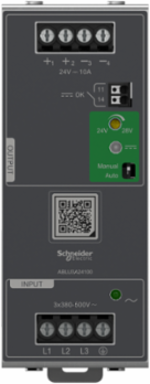

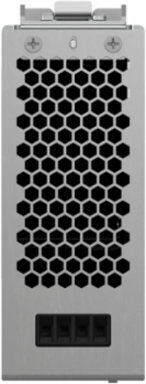

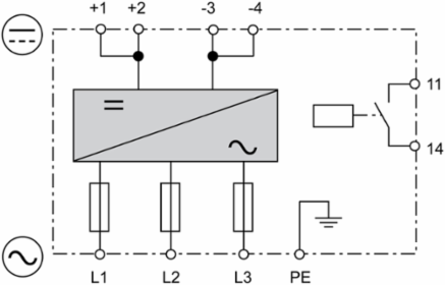

Schneider Electric ABLU3A24100 Regulated Power Supply, 380...500V AC, 24V, 10A, 3 phases, Universal

MPN: ABLU3A24100
PPN: SCH-ABLU3A24100
UNSPSC: 39121004

$393.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

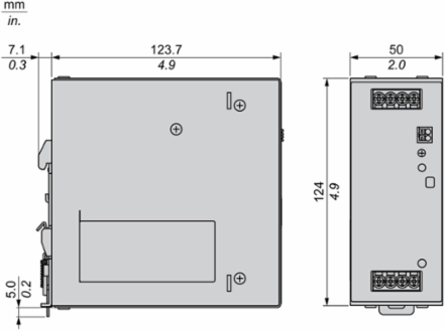

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 380V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It operates from minus 25 to plus 55degrees celcius and plus 55 to 70degrees celcius with a current derating of 3.3%, at an altitude of less than 2000meters. It measures 124mm high, 50mm wide, and 125.2mm deep. It weighs 0.91kg. It is a power supply for industrial use. It meets CE, CB Scheme, cULus Listed, UL HazLoc Class1Div2, cURus Recognized, RCM, EAC, UKCA, KC. To IEC/EN-UL/CSA 62368-1, IEC/EN-UL/CSA 61010-1/2 standards. GV2ME07 or GV2RT06 circuit breakers are recommanded for its protection. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.

Features

One of the most compact on the market
Up to +70°C ambiant temperature
Manual or Automatic reset in case of output overload or short circuit
Power reserve allowing to deliver a current of 150% its nominal rating for a short time
Conformal coating in order to resist to common dust and humidity
Direct access to the documentation and serial number thanks to QR code

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	125.2 mm

Complementary Attributes

Maximum Leakage Current	2 mA 500 V AC

Rated Power In W	240 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	< 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC< 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC, < 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC< 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.75 A 380 V AC, < 0.65 A 500 V AC, < 0.65 A 500 V AC
Earthing System	TN, TT, IT
Electromagnetic Compatibility	immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8immunity to voltage dips conforming to IEC 61000-4-11disturbing field emission conforming to EN 55016-2-3limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Inrush Current	25 A 380 V, 25 A 500 V
Marking	CE, UKCA
Overvoltage Category	III, II
Residual Ripple	< 100 mV, < 100 mV, < 100 mV, < 100 mV
Supply	SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Certificate Agency	CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, cURus
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Shock Protection Class	class I
Enclosure Material	metal
Network Frequency Limits	50-60 Hz
Power Dissipation In W	27 W
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Power Supply
Returnability	Yes
Shock Resistance	150 m/s² 11 ms
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	50 mm
Customs Code	8504409530

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Dielectric Strength	4000 V AC with input to output2000 V AC with input to ground1500 V AC with output to ground, 4000 V AC with input to diagnostic relay500 V AC with output to diagnostic relay, 1500 V AC with diagnostic relay to ground, with shutdown input not isolated from output
Efficiency	89.5 % 380 V AC, 89.5 % 500 V AC
Holding Time	> 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC> 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC> 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 40 ms 500 V AC, > 40 ms 500 V AC
Line And Load Regulation	< 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C< 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C< 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C, < 0.6 % +/- 0.5 % network 150 % load at 25 °C

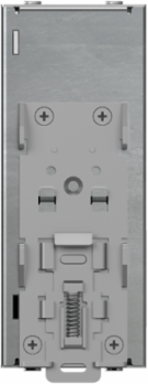

Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
Power Factor	0.50 at 380 V AC, 0.50 at 500 V AC
Response Time	< 1 s, < 1 s, < 1 s, < 1 s
Connections Terminals	screw connection 1.5...6 mm², 16 AWG...10 AWG) without wire end ferrule output, screw connection 1.5 x 4 mm², 16 AWG...12 AWG) with wire end ferrule output, screw connection 0.75…6 mm², 18 AWG...10 AWG) without wire end ferrule inputscrew connection 0.75...4 mm², 18 AWG...12 AWG) with wire end ferrule inputcage clamp 0.2...1.5 mm², 22 AWG...16 AWG) without wire end ferrule diagnostic relaycage clamp 0.2...0.75 mm², 22 AWG...18 AWG) with wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², 22 AWG...18 AWG) with wire end ferrule shut down input
Meantime Between Failure Mtbf	1095200 h at 25 °C, full load conforming to SR 332, 416700 h at 55 °C, 80 % load conforming to SR 332
Local Publishable Date	2026-08-06
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2212024EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2247
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Efficiency At Full Load	320...575 V AC 3 phase
Electromagnetic Emission	conducted emissions IEC 61000-6-3radiated emissions IEC 61000-6-4
Load Capacitance	200000 µF
Permissible Temporary Current Boost	1.5 x In for 5 seconds)
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Relay Type	electromechanical relay 1000.0 mA 30 V
Service Life	10 year(s) 40 °C 80 % load
Status Led	1 LED (green and red) product status1 LED (Green) input voltage
Vibration Resistance	3.5 mm (f= 3-11.9 Hz) conforming to IEC 60068-2-620 m/s² (f= 11.9-150 Hz) conforming to IEC 60068-2-6
Height Nominal	124 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)55-70 °C with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m)
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2212024EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Operating Altitude	< 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III< 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, overvoltage category II
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2212024EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2212024EN

General Attributes

Product Or Component Type	power supply

Range Of Product	Modicon Power Supply

ETIM

ETIM 8	EC002540
ETIM 10	EC002540

ETIM 9	EC002540

Output Attributes

Output Protection Type	against overload and short-circuits, protection technology: manual or automatic reset by switchagainst over temperature, protection technology: automatic resetagainst overvoltage, protection technology: manual reset
Output Voltage Limits	24...28 V
