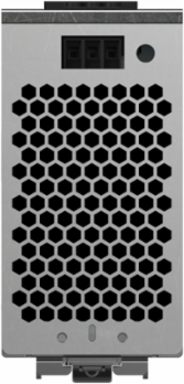

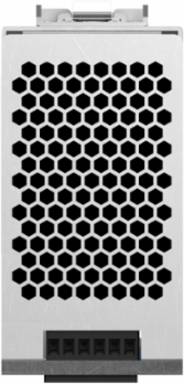

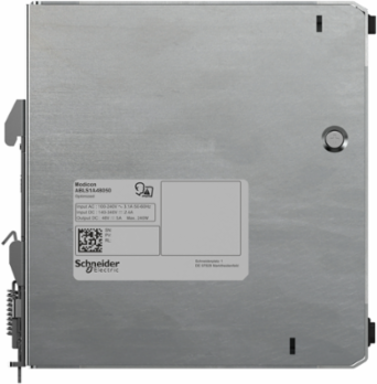

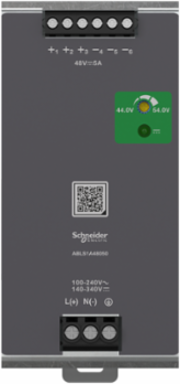

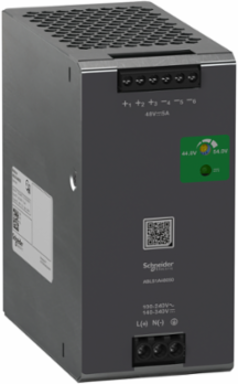

Schneider Electric ABLS1A48050 Regulated Power Supply, 100...240V AC, 48V, 5A, single phase, Optimized
Schneider Electric ABLS1A48050 Regulated Power Supply, 100...240V AC, 48V, 5A, single phase, Optimized
- MPN: ABLS1A48050
- PPN: SCH-ABLS1A48050
- UNSPSC: 39121004
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$351.66/ EA
Description
This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 5A at 48V DC and a rated power output of 240W. It supplies control circuits in industrial applications. This power supply has a protection against overload and short-circuit. It operates from minus 25degrees celcius to plus 70degrees celcius, and from 0meter to 2000meters or 5000meters with derating. It measures 123.6mm high, 60mm wide, and 117.6mm deep. It weighs 0.8kg. It is a power supply for industrial use. It conforms to CE, CB Scheme, cULus Listed, cURus Recognized, RCM, EAC, UKCA, KC certifications, to IEC/EN 62368-1, IEC/EN 61010-1/2, UL/CSA61010-1/2 standards. Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. Type of protection is 6 A, B or C curve. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
Features
- One of the most compact on the market
- Up to +70°C ambiant temperature
- 6 output terminals
- Conformal coating in order to resist to common dust and chemical pollutants
Specifications
Conformance Attributes
- Product Certifications
- CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, cURus
StandardsIEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, CSA C22.2 No. 107.1
Complementary Attributes
- Maximum Leakage Current
- 1 mA 240 V AC
Rated Power In W240 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC, < 2.4 A 140 V DC, < 2.4 A 140 V DC
- Earthing System
- TN, TT, IT
- Efficiency At Full Load
- 85...264 V AC, 120...375 V DC
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
- Inrush Current
- 30 A 115 V, 60 A 230 V
- Marking
- CE, UKCA
- Power Factor
- 0.95 at 115 V AC, 0.95 at 230 V AC
- Supply
- SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
- Carbon Footprint Of The Distribution Phase A4
- 0.32782445220859463, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.013232829626003108, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 790 kg CO2 eq., 1789.5952095872728
- Connections Terminals3
- screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule output, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule output, screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input
- Local Publishable Date
- 2026-01-12
- Serviceability
- No
- Field Service Division
- IDIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2007005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Electrical Shock Protection Class
- class I
- Load Capacitance
- 8000 µF
- Overvoltage Category
- II
- Power Dissipation In W
- 36 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Power Supply
- Returnability
- Yes
- Shock Resistance
- 150 m/s² 11 ms
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- Regulated Power Supply, 100...240V AC, 48V, 5A, single phase, Optimized
- Product Kit Identifier
- N
- Pep Code
- ENVPEP2007005_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Dielectric Strength3000 V AC with input to output, 2000 V AC with input to ground, 1500 V AC with output to ground
Efficiency85 % 115 V AC, 88 % 230 V AC
Electromagnetic Compatibilityimmunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Holding Time> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC
Line And Load Regulation< 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C

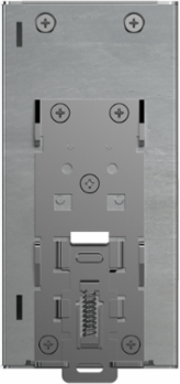

Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
Response Time< 1 s, < 1 s
Vibration Resistance3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.534724708115669
Carbon Footprint Of The Manufacturing Phase A1 To A38 kg CO2 eq., 7.615912046201498
Connections Terminalsscrew connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule output, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule output, screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input
Local Data StatusPublishable
Device TypePLC System - PLC Component
TraceabilityYes
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Market SegmentationIndustrial
Enclosure Materialmetal
Network Frequency Limits50-60 Hz
Package Weight Lbs994.000 g
Power Supply Typeregulated switch mode
Product Or Component Typepower supply
Residual Ripple200 mV
Service Life10 year(s) 40 °C 50 % load
Status Led1 LED (Green) output voltage
Total Lifecycle Carbon Footprint1 799 kg CO2 eq.
Meantime Between Failure Mtbf2at 25 °C, full load conforming to SR 332
Stocking FlagY
Meantime Between Failure Mtbf3at 25 °C, full load conforming to SR 332
Pep Verification Date2025-09-18
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 1799.0869036234246
- Environmental Disclosure
- ENVPEP2007005_V2
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-18
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), 40-70 °C with current derating mounting position A 115 V AC < 6561.68 ft (2000 m), 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m)
Operating Altitude< 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2007005EN
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2007005_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
Output Attributes
- Output Protection Type
- against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
- Output Voltage
- 48 V DC
- Power Supply Output Current
- 5 A
Output Couplingsingle/parallel by switch
Output Voltage Limits44…54 V
Input Attributes
- Efficiency
- 85 % 115 V AC, 88 % 230 V AC
- Input Protection Type
- integrated fuse (not interchangeable) 6.3 A, external protection (recommended) 20 A, external protection (recommended) 6 A
Efficiency At Full Load85...264 V AC, 120...375 V DC
Input Voltage100...240 V AC single phase, 100...240 V AC phase to phase, 140...375 V DC
Specifications
- Depth
- 117.6 mm
