Schneider Electric METSEPMFIBER PowerLogic PM8000 Fiber-Ethernet Communication Module, 100BASE-FX
- MPN: METSEPMFIBER
- PPN: SCH-METSEPMFIBER
CAD
$1240.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

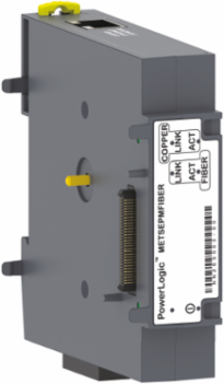

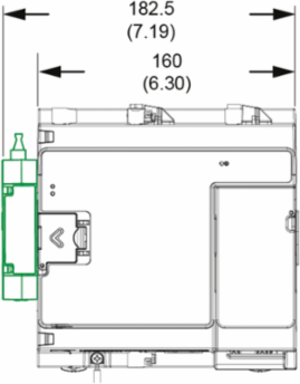

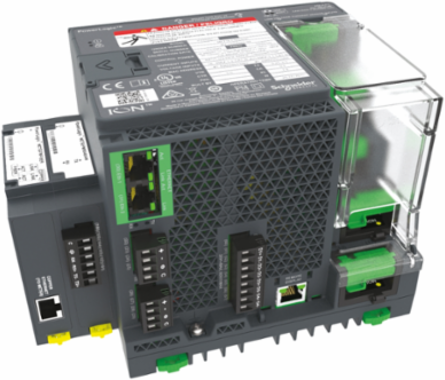

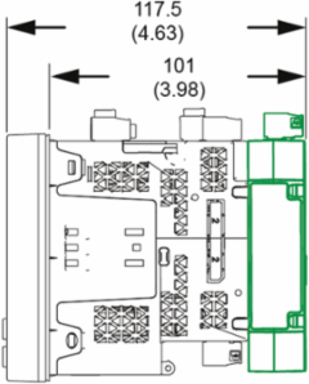

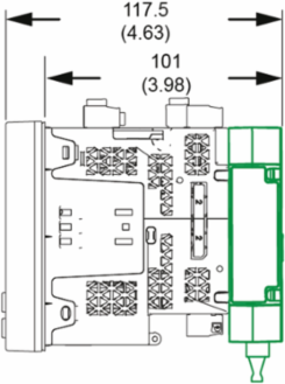

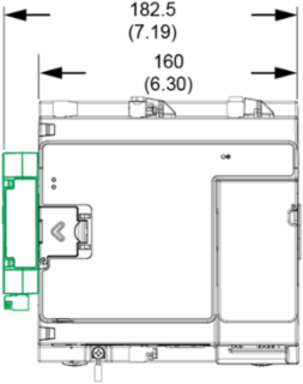

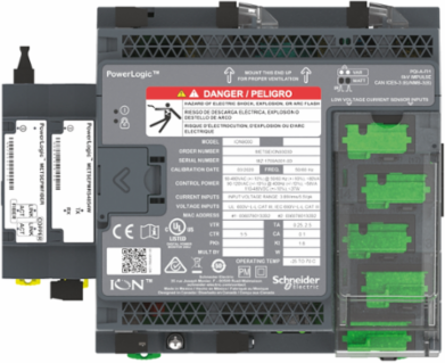

This device is an optional module for advanced meter that provide fiber optic SC-duplex connectivity, converted from the onboard Ethernet port. The Fiber-Ethernet option module can further increase our Advanced Meters flexibility by adding an additional communication port. Provides isolated data transmission through fiber optics up to the length of 2000 m. The module is directly powered from the base meter. This module enables data transfer through fiber optics medium, and offer reliable, and insulated data transmission. It supports multi-mode 100BASE-FX technology and requires SC duplex connector input. Only 1 Fiber-Ethernet module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 100.2 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 102.33 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one fiber-Ethernet module plus 3 other options. It is connected to the base meter with the help of Ethernet patch cable which is included in the module packaging. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Mexico, United States
Depth90.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus, ION, DNP3, DLMS, IEC 61850
Communication Port SupportSC fiber optic
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.007370376712328768, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.002901011830635119, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 34 kg CO2 eq., 34.25940000000001
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2021-09-14
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2110011_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2146
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PowerLogic
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Optional port provides a 4-wire RS-485 interface / Comm with Baud rates of 2400 to 115200, pluggable screw terminal connector.& 10Maximum of 4 option modules in total can be connected to the meter.The Energy consumption is 1.9W power in active mode,1.68W in standby and 1.68W in Sleep mode . A typical lifetime is 10 years.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 61.32
- Energy Model - Installation [A5]
- Electricity Mix; AC; 1kV - 60kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; 1kV - 60kV; EU-27
- Width Nominal
- 22 mm
- Package Weight(Lbs)
- 174.69 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 352.835
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 645.19
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 645.19
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1169427148194272
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.07510896637609
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=PLSED310106EN&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
Local Publishable Date2025-08-19
Pre Comm Date2021-09-14
Stocking FlagY
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier2
Function OptionStandard
Device Applicationoptional expansion module
Port Ethernet100BASE-FX
Product Or Component Typecommunication module
Range Of ProductPowerLogic
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Pep CodeENVPEP2110011EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity Mix; AC; 1kV - 60kV; EU-27
Height Nominal100.2 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]1446.2
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]127.4945
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]695.065
Water Pollution (M3) Operational Energy Use [B6]1439.48
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 39.46172306973849
- Environmental Disclosure
- ENVPEP2110011EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2110011_V1
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2110011EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- communication module
Range Of ProductPowerLogic
ETIM
- ETIM 8
- EC002295
ETIM 9EC002295
