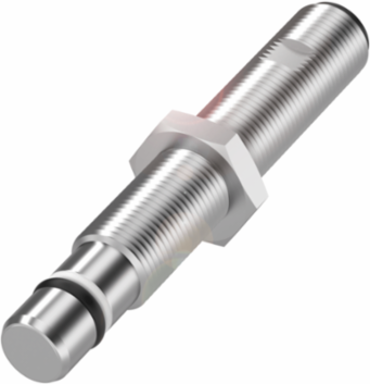

Balluff BES 516-300-S135-NEX-S4-D Pressure-rated inductive sensors BES 516-300-S135-NEX-S4-D

Pressure-rated inductive sensors BES 516-300-S135-NEX-S4-D
  • MPN: BES 516-300-S135-NEX-S4-D
  • PPN: BAL-BHS001K

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$297.54/ EA

Description

Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

Specifications

Specifications

Dimension
Ø 12 x 78 mm
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Housing material
Stainless steel
Connection
Connector, M12x1-Male, 4-pin
Ambient temperature
-25-80 °C
IP rating
IP68
StyleM12x1
Range1.5 mm
Switching frequency1000 Hz
Material sensing surfaceEP
Operating voltage Ub10-30 VDC
Pressure rating max.500 bar
Approval/ConformityCE, EAC, ATEX, WEEE
