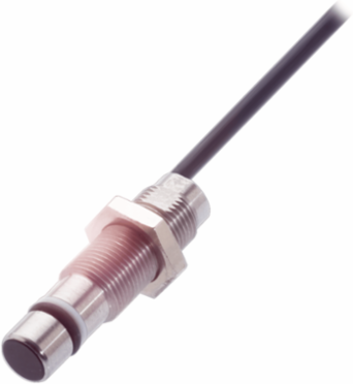

Balluff BES 516-300-S240-D-PU-03 Pressure-rated inductive sensors BES 516-300-S240-D-PU-03

Pressure-rated inductive sensors BES 516-300-S240-D-PU-03

Balluff BES 516-300-S240-D-PU-03 Pressure-rated inductive sensors BES 516-300-S240-D-PU-03

MPN: BES 516-300-S240-D-PU-03
PPN: BAL-BHS002H

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$439.23/ EA

Loading add to cart quantity...

Description

Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

Specifications

Specifications

Dimension: Ø 12 x 47 mm

Installation: for flush mounting

Switching output: PNP Normally open (NO)

Housing material: Stainless steel

Connection: Cable, 3.00 m, PUR

Ambient temperature: -25-80 °C

IP rating: IP68

StyleM12x1

Range1.5 mm

Switching frequency2000 Hz

Material sensing surfaceEP

Operating voltage Ub10-30 VDC

Pressure rating max.500 bar

Approval/ConformityCE, cULus, EAC, WEEE
