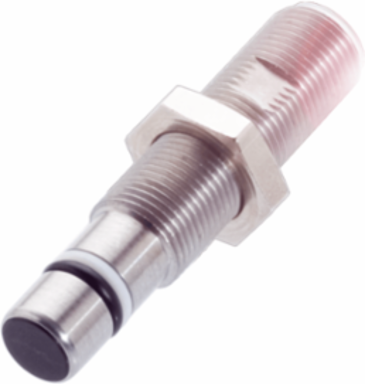

Balluff BES 516-300-S249-S4-D Pressure-rated inductive sensors BES 516-300-S249-S4-D
- MPN: BES 516-300-S249-S4-D
- PPN: BAL-BHS002Y
CAD
$517.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 56 mm
- Installation
- for flush mounting
- Range
- 1.5 mm
- Switching frequency
- 2000 Hz
- Material sensing surface
- EP
- Operating voltage Ub
- 10-30 VDC
- Pressure rating max.
- 500 bar
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM12x1
Installation length from contact surface17.9 mm
Switching outputPNP Normally open (NO)
Housing materialStainless steel
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-80 °C
IP ratingIP68
