Balluff BES M08EH1-PSC20B-S04G-S01 Pressure-rated inductive sensors BES M08EH1-PSC20B-S04G-S01

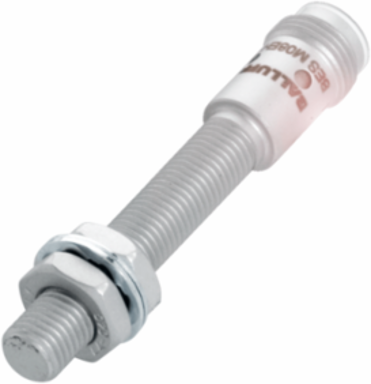

Pressure-rated inductive sensors BES M08EH1-PSC20B-S04G-S01
  • MPN: BES M08EH1-PSC20B-S04G-S01
  • PPN: BAL-BES02N6

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$198.39/ EA

Description

Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

Specifications

Specifications

Dimension
Ø 8 x 65 mm
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Housing material
Stainless steel
Material sensing surface
Stainless steel, coated
Operating voltage Ub
10-30 VDC
Pressure rating max.
80 bar
Approval/Conformity
CE, cULus, EAC, WEEE
StyleM8x1
Range2 mm
Switching frequency750 Hz
Surface protectionPTFE coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
IP ratingIP67
