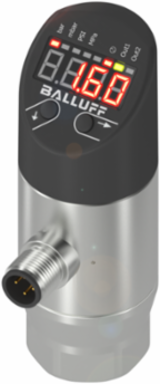

Balluff BSP V010-GV009-P00S2B-S4 Pressure Sensor, IO-Link 1.1, 35 Bar, IP67, 1/4" NPT
- MPN: BSP V010-GV009-P00S2B-S4
- PPN: BAL-BSP00Z3
CAD
$589.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor, IO-Link 1.1, 35 Bar, IP67, 1/4" NPT
Documentation & Downloads
Specifications
Additional
- Pressure Ratings
- Burst pressure 35 bar, Overload pressure 20 bar, Measuring range -1 to 10 bar
- Accuracy
- 0.5% FSO BFSL
- Switching Output
- 2x PNP/NPN NO/NC switchable
- Ambient Temperature Range
- -40 to 85 C
- Materials
- Process connection: 1.4301 stainless steel; Housing: 1.4301 stainless steel and high-density polyethylene (PE); Gasket: Fluoroelastomer
- Communication Protocol
- IO-Link 1.1
- Country of Origin
- Germany
Operating Voltage18 to 30 VDC
Connection1/4" NPT process connection; Connector M12x1 male, 4-pin
Analog OutputSelectable analog voltage/current 4 20 mA / 0 10 V
Media Temperature Range-40 to 125 C
Ingress ProtectionIP67 (when threaded in)
ComplianceCE, UKCA, cULus, WEEE
