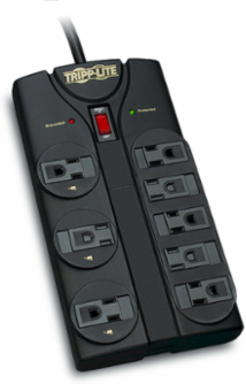

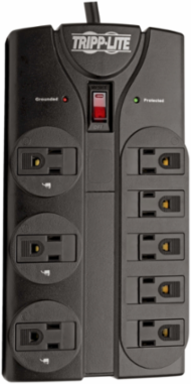

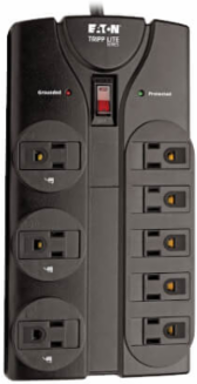

Tripp Lite TLP808B Protect It! 8-Outlet Surge Protector, 8 ft. Cord, 1440 Joules, Black Housing
Tripp Lite TLP808B Protect It! 8-Outlet Surge Protector, 8 ft. Cord, 1440 Joules, Black Housing
- MPN: TLP808B
- UPC: 037332189837
- PPN: TRP-TLP808B
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$64.89/ EA
Description

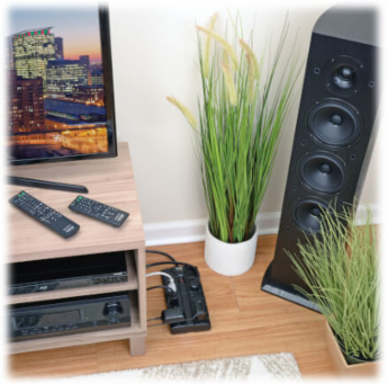

Safeguard your workstation or home electronics against surges, spikes and line noise. Ideal for protecting your computer, printer, scanner, external hard drive and other sensitive electronics.
Features

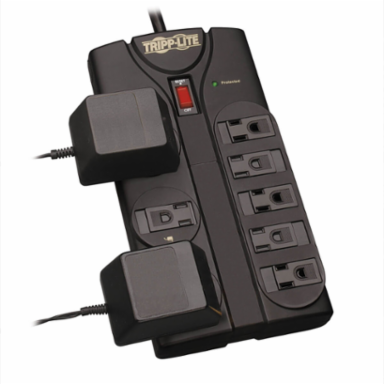

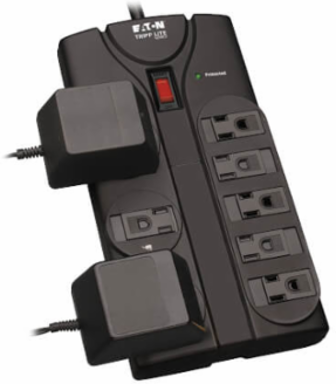

- 8 NEMA 5-15R outlets, including 3 for bulky transformers
- Surge suppression rating of 1440 joules
- Filters out threatening EMI/RFI line noise
- 15A resettable circuit breaker prevents dangerous overloads

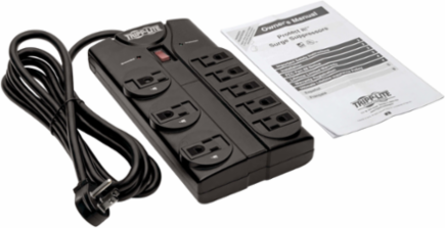

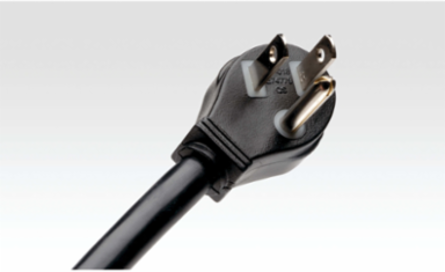

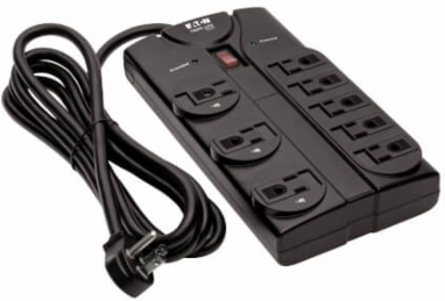

- 8 ft. AC power cord with right-angle NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $75,000 Ultimate Lifetime Insurance
- 1440-Joule Surge Protection for Home or Office Electronics
- 8 Outlets Accept Wide Range of Electronic Devices
- Premium Safety Features

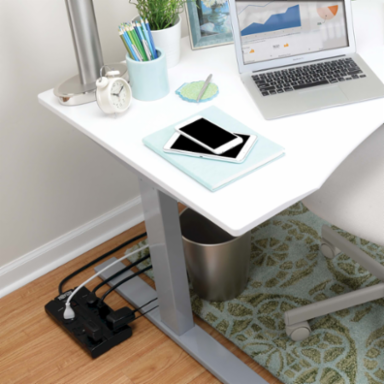

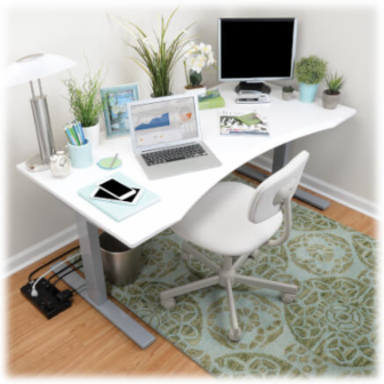

- Fits Effortlessly Into Your Workstation
- Auto-Shutdown
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 1440
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- UL1449 Let Through Rating
- 330 L-G, 400 L-N, 400 N-G
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd Edition
- Canada
- cUL
UL1363 (Power Tap)UL1363
ApprovalsExceeds IEEE 587 category A&B specifications
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black

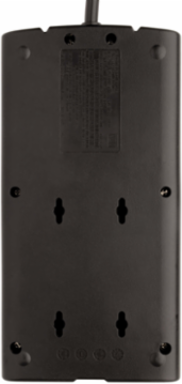

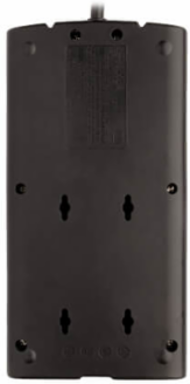

- Integrated Keyhole Mounting Slots
- Yes
- Outlets Measurement (Center to Center)
- Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
- Shipping Dimensions (hwd / in.)
- 2.00 x 7.50 x 11.50
- Unit Dimensions (hwd / in.)
- 4.86 x 9.55 x 1.51
ColorBlack
Housing ColorBlack
Material of ConstructionPlastic
Receptacle ColorGray
Shipping Weight (lbs.)2.00
Unit Weight (lbs.)1.76
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes

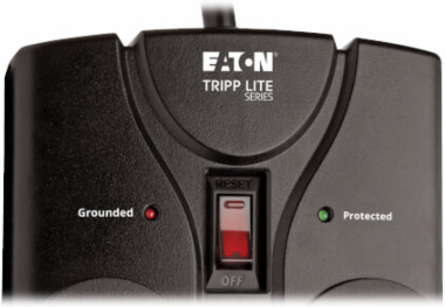

- Diagnostic LED Details

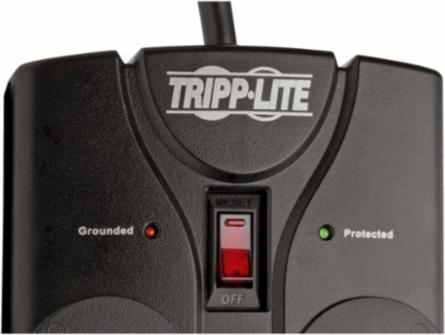

- Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
SwitchesCombination AC circuit breaker and 2 position red illuminated on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 84000
- Input Cord Length (ft.)
- 8
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120

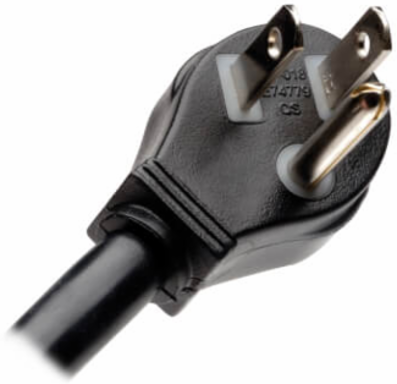

Input Plug TypeNEMA 5-15P
Right-Angle PlugYes
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) 5-15R
- Transformer Accommodation
- (6) Yes
- Right-Angle Outlets
- No
Output (Watts)1800
Circuit Breaker (amps)15
Outlet OrientationSingle row of 5, plus a second row of 3 for transformer accommodation
Overview
- UPC Code
- 037332189837
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$75,000 Ultimate Lifetime Insurance
