Schneider Electric 9001K1L38LRRH13 Illuminated Push-Button, 30 mm, Red, IP66, 120V AC/DC
Schneider Electric 9001K1L38LRRH13 Illuminated Push-Button, 30 mm, Red, IP66, 120V AC/DC
- MPN: 9001K1L38LRRH13
- UPC: 785901733874
- PPN: SCH-9001K1L38LRRH13
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$317.15/ EA
Description

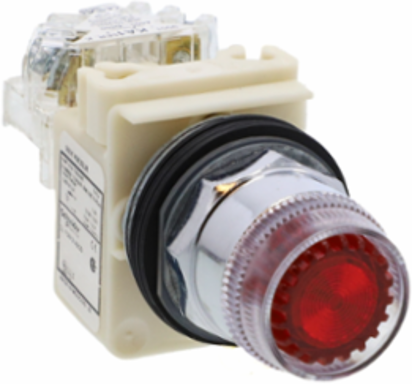

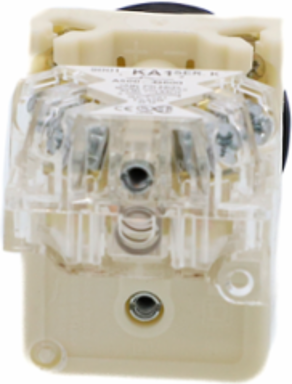

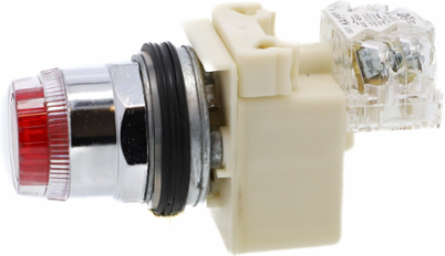

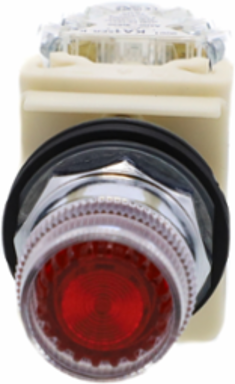

This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red
- Size
- 30 mm
Light Source Colorred
Conformance Attributes
- Product Certifications
- UL 508, NEMA
StandardsIEC 60947-1, JIS C 4520, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-4
Complementary Attributes
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- flush, red flush, unmarked
- Us Rated Supply Voltage2
- 120 V, 120 V AC/DC
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Bezel Material
- metal
- Cap Operator Or Lens Color
- red
- Contact Operation
- standard
- Contacts Type And Composition
- 1 C/O
- Light Block Supply
- direct
- Light Source Color
- red
- Mounting Diameter
- 30 mm
- Operator Additional Information
- plastic guard
- Package Weight Lbs
- 181.437 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shape Of Signaling Unit Head
- octagonal
- Short Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Ie Rated Operational Current2
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Ui Rated Insulation Voltage2
- 250 V 3)IEC 60947-1
- Connections Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Stocking Flag
- Y
- Pep Code
- ENVPEP2503027EN
- Connections Terminals3
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Ith Conventional Free Air Thermal Current5
- 10 A
- Uimp Rated Impulse Withstand Voltage5
- 2.5 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Icm Rated Short Circuit Making Capacity212 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
Icm Rated Short Circuit Making Capacity512 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Bulb BaseBA 9s
Compatibility Code9001K
Contacts Materialsilver alloy contacts
Device Short Name9001K
Light SourceLED
Mechanical Durability5000000 cycles
Operating Positionany position
Overvoltage Categoryclass II conforming to IEC 61140
Positive Openingwithout
Product Or Component Typeilluminated push-button
Range Of ProductHarmony 9001K
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Sustainable PackagingYes
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ith Conventional Free Air Thermal Current210 A
Uimp Rated Impulse Withstand Voltage22.5 kV IEC 60947-1
Medium DescIlluminated push-button, Harmony 9001K, metal, plastic guard flush, red, 30mm, spring return, LED red, 120V, 1 C/O
Product Kit IdentifierN
Global Commercial StatusCommercialised
Ie Rated Operational Current50.55 A 125 V, DC-13, A600-Q600 NEMA
Ui Rated Insulation Voltage5250 V 3)IEC 60947-1
Us Rated Supply Voltage5120 V AC/DC
Environment Attributes Main
- Take Back
- No, Nej
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2503027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation-25-70 °C
Circularity ProfileENVEOLI2503027EN
IP Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
Overview Attributes
- Device Presentation
- complete product
Downloads
