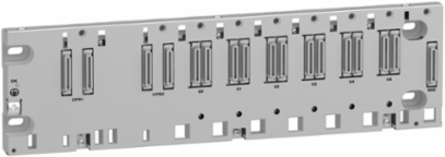

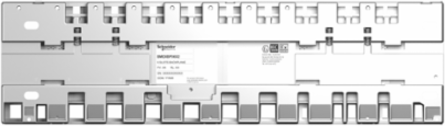

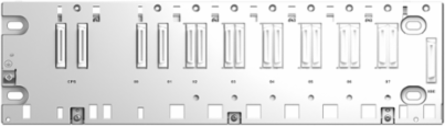

Schneider Electric BMEXBP0602 Modicon X80 6-Slot Ethernet Backplane Rack, IP20 Rated, 1.02 kg
Schneider Electric BMEXBP0602 Modicon X80 6-Slot Ethernet Backplane Rack, IP20 Rated, 1.02 kg
- MPN: BMEXBP0602
- PPN: SCH-BMEXBP0602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1085.88/ EA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 6-slot dual Ethernet and X-bus backplane provides 6 slots with 6 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 152mA at 24V DC and 58mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 201000 hours of MTBF. It is an IP20 rated product. It weighs 1.02kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Specifications
Specifications
- Range Of Product
- Modicon X80
Accessory / Separate Part Typerack
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2203018EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2203018EN
Complementary
- Mtbf Reliability
- 1353797 H
- Electrical Connection
- 1 connector (XBE) expansion module
- Current Consumption
- 152 mA 24 V DC || 58 mA 3.3 V DC
- Power Consumption In W
- 191 mW 3.3 V DC || 3.6 W 24 V DC
Fixing Modeby 4 screws 4.32-6.35 mm panel || by 4 M6 screws plate || by clips 35 mm symmetrical DIN rail
Number Of Slots6 bus X + Ethernet
Net Weight1.02 kg
Product Compatibilityspecific application module || BMX processor || I/O module || BME processor || BMXCPS4002
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Relative Humidity
- 5-95 % without condensation
Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Ip Degree Of ProtectionIP20
