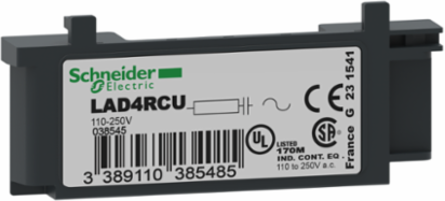

Schneider Electric LAD4RCU TeSys D RC Transient Suppressor, 110-250V AC, IP2X Protection

MPN: LAD4RCU
PPN: SCH-LAD4RCU

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$50.92/ EA

Qty:

Loading add to cart quantity...

Description

TeSys D suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 110-250V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Specifications

Environment

Product Certifications: UL || CSA

Standards: IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5

Ambient Air Temperature For Storage: -40-80 °C

Ambient Air Temperature For Operation-25-55 °C

Ip Degree Of ProtectionIP2XIEC 60529

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111253EN

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive: Compliant

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

[Uc] Control Circuit Voltage: 110...250 V AC

Mounting Location: side

Mounting Mode: by clips

Net Weight0.012 kg

Maximum Peak Voltage3 Uc

Suppressor TechnologyRC circuit

Specifications

Product Or Component Type: suppressor module

Product Compatibility: 3P LC1D09...D38 || 4P LC1DT20...DT40 || 4P LC1D098...D258 || CAD32, CAD50

RangeTeSys

Device Short NameLAD4
