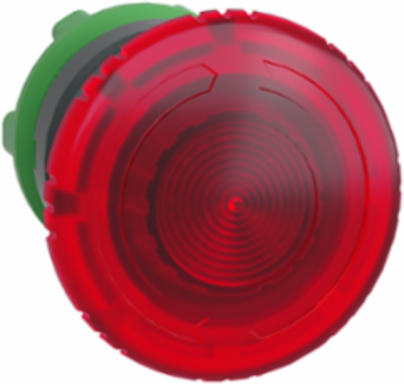

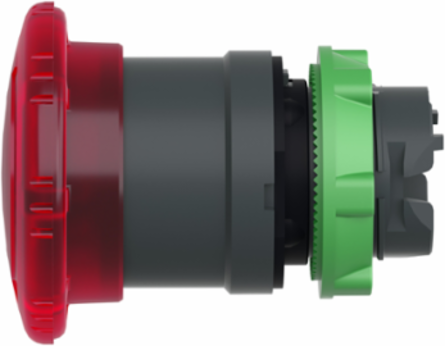

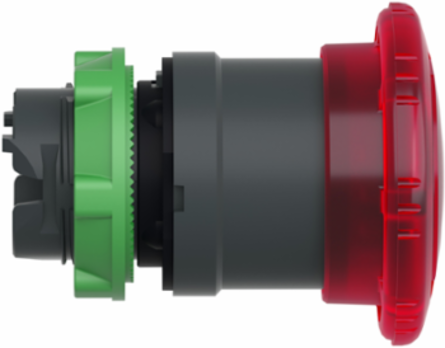

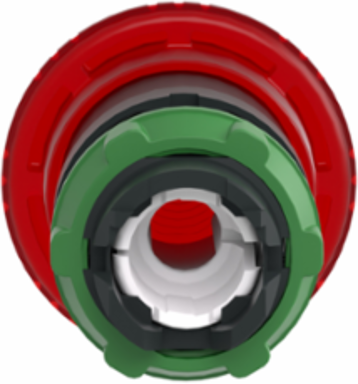

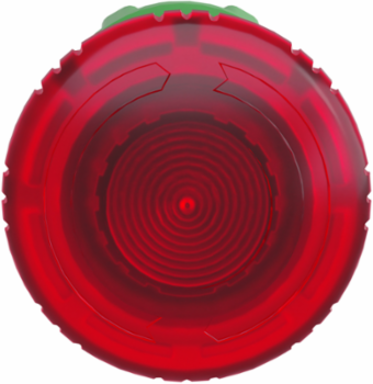

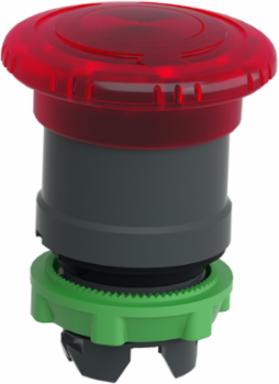

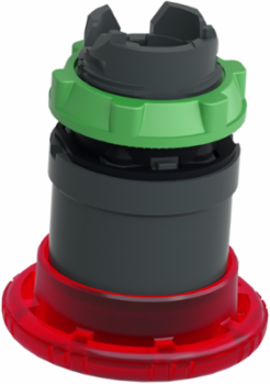

Schneider Electric ZB5AW743 Red Mushroom Emergency Stop Push Button, 40mm, IP66, LED
- MPN: ZB5AW743
- PPN: SCH-ZB5AW743
CAD
$123.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This red illuminated 40mm mushroom shape button head for universal LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes

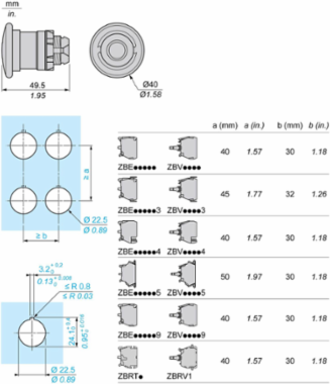

- Cad Overall Depth
- 50 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Electrical Composition Code
- M6 2 single front mounting integral LED and transformerM10 2 single front mounting integral LED, MF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LED
- X C Product
- emer swi off illum turn to rel
- Carbon Footprint Of The Distribution Phase [A4]
- 0.006341568627450981, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.006098039215686274, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 16 %
- Device Short Name
- ZB5
- Head Type
- standard
- Main Group
- switching off
- Mechanical Durability
- 300000 cycles
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Reset
- turn to release
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 38
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Station NameXALD 1 cut-out, XALK 1 cut-out
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.05085490196078431
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.15335294117647058
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content29 %
Compatibility CodeZB5
Group Of Productemer swi off illum turn to rel
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Markingunmarked
Mounting Diameter22 mm
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for illuminated emergency switching off push-button
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingYes
Type Of Operatorlatching
Pep CodeENVPEP2404014EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colourred
Package Weight(Lbs)32.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 29 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.21664745098039212
- Environmental Disclosure
- ENVPEP2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- universal LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated emergency switching off push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
