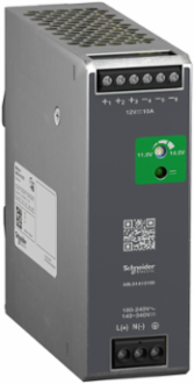

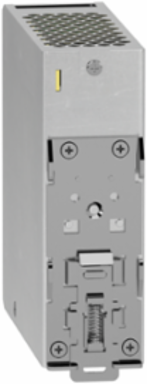

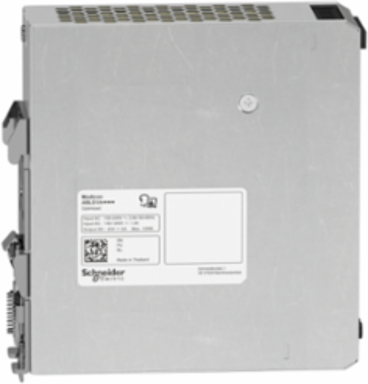

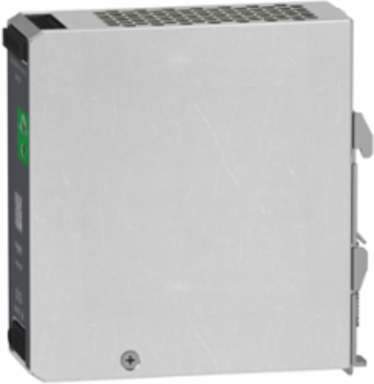

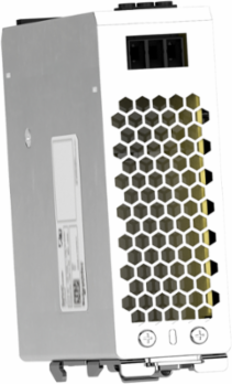

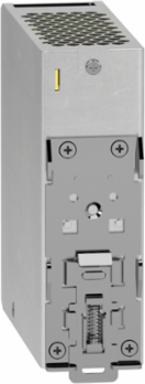

Schneider Electric ABLS1A12100 Regulated Power Supply 12V 10A 120W with DIN Rail Mount
Schneider Electric ABLS1A12100 Regulated Power Supply 12V 10A 120W with DIN Rail Mount
- MPN: ABLS1A12100
- PPN: SCH-ABLS1A12100
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$240.69/ EA
Description

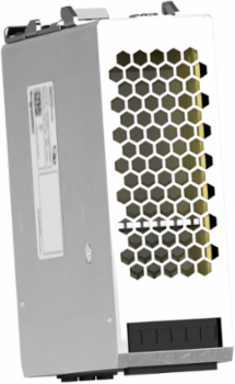

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 12V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 40mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.520kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 13A, C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Specifications
Complementary
- Output Coupling
- parallel || serial
- Residual Ripple
- < 120 mV
- Holding Time
- > 20 ms 115 V AC || > 40 ms 230 V AC
- Earthing System
- TN || TT || IT
- Dielectric Strength
- 3000 V AC input to output
- Current Consumption
- < 2.5 A 115 V AC || < 1.4 A 230 V AC || < 1.3 A 140 V DC
- Net Weight
- 0.52 kg
- Input Protection Type
- integrated fuse (not interchangeable) 4 A || external protection (recommended) 20 A Curve C || external protection (recommended) 13 A Curve C
- Service Life
- 10 year(s)
- Power Dissipation In W
- 25 W
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail
- Response Time
- < 1 s
- Width
- 40 mm
- Inrush Current
- 30.0 A 115 V || 60.0 A 230 V
- Depth
- 117.6 mm
Height123.6 mm
Status Led1 LED (green) output voltage
Input Voltage Limits85...264 V AC without temperature derating || 120...375 V DC without temperature derating || 85…120 V DC with temperature derating
Connections - Terminalsscrew connection 0.5...4 mm², AWG 20...AWG 12) without wire end ferrule output || screw connection 0.5...2.5 mm², AWG 20...AWG 14) with wire end ferrule output || screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input || screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input
Network Frequency Limits50-60 Hz
SupplySELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Maximum Leakage Current1 mA 240 V AC
Output Protection Typeagainst overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Meantime Between Failure [Mtbf]700000 h at 25 °C, full load conforming to SR 332
Output Voltage Limits11...14 V
Load Capacitance8000 µF
Line And Load Regulation< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
Overvoltage CategoryII
Efficiency84 % 115 V AC || 86 % 230 V AC
Power Factor0.55 at 115 V AC || 0.45 at 230 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2007005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2007005EN
Specifications
- Range Of Product
- Modicon Power Supply
- Product Or Component Type
- power supply
- Input Voltage
- 100...240 V AC single phase || 100...240 V AC phase to phase || 140...340 V DC
- Rated Power In W
- 120 W
Output Voltage12 V DC
Power Supply Typeregulated switch mode
Power Supply Output Current10 A
Enclosure Materialaluminium
Environment
- Standards
- IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
- Product Certifications
- CE || cUL listed || cUL recognized || RCM || CB Scheme || EAC || KC
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 || immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 || immunity to voltage dips conforming to IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to IEC 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
- Operating Altitude
- < 5000 m
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Ambient Air Temperature For Operation-20--10 °C with current derating of 2 % per °C mounting position A < 2000 m || -10-40 °C without derating mounting position A 115 V AC < 2000 m || -10-50 °C without derating mounting position A 230 V AC < 2000 m || 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m || 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m
Pollution Degree2
Shock Resistance150 m/s² 11 ms
Ip Degree Of ProtectionIP20
Electrical Shock Protection Classclass I
