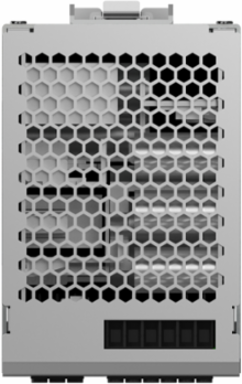

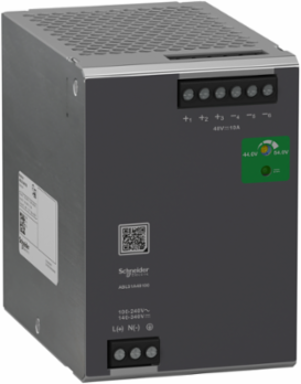

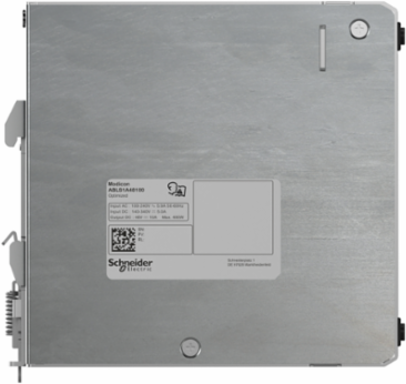

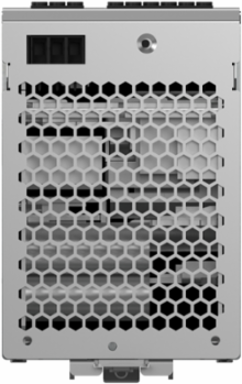

Schneider Electric ABLS1A48100 Regulated Power Supply 48V 10A Single Phase, 100-240V AC, IP20

MPN: ABLS1A48100
PPN: SCH-ABLS1A48100
UNSPSC: 39121004

$650.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This regulated power supply from Schneider Electric is designed to deliver consistent and reliable 48V power, outputting up to 10A in single-phase applications. With a versatile input range of 100-240V AC, it effortlessly integrates into various systems, ensuring efficient performance across different environments. The IP20 rating signifies solid protection against dust and contact, making it suitable for controlled indoor settings. Its robust construction and dependable operation make it a valuable component for powering critical equipment and controls in industrial and technical settings.

Features

One of the most compact on the market
Up to +70°C ambiant temperature

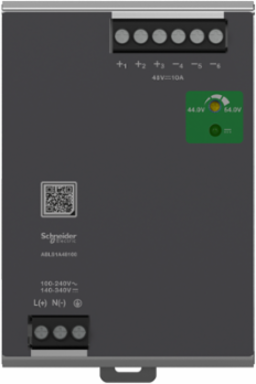

6 output terminals
Conformal coating in order to resist to common dust and chemical pollutants
Conformal coating in order to resist to common dust and humidity
Direct access to the documentation and serial number thanks to QR code

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India
Depth	128.5 mm

Weight	1250 g

Complementary Attributes

Maximum Leakage Current	1 mA 240 V AC

Rated Power In W	240 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	< 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC< 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC< 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC
Electromagnetic Compatibility	immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8immunity to voltage dips conforming to IEC 61000-4-11disturbing field emission conforming to EN 55016-2-3limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Line And Load Regulation	< 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C< 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C< 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 1.5 % network 0 to 100 % load at 25 °C, < 0.5 % network full voltage range in line at 25 °C, < 0.5 % network full voltage range in line at 25 °C

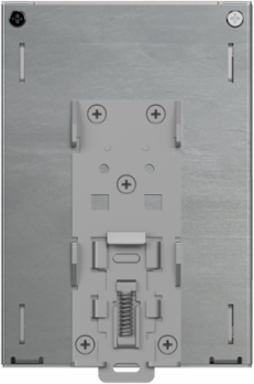

Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
Response Time	< 1 s, < 1 s, < 1 s, < 1 s
Connections Terminals	screw connection 0.75...4 mm², 18 AWG...12 AWG) with wire end ferrule inputscrew connection 0.5...4 mm², 20 AWG...12 AWG) without wire end ferrule output, screw connection 0.5...2.5 mm², 20 AWG...14 AWG) with wire end ferrule output, screw connection 0.75...4 mm², 18 AWG...12 AWG) without wire end ferrule input
Carbon Footprint Of The Distribution Phase A4	0.512225706575929, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.020676296290629857, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 237 kg CO2 eq., 2236.9940119840912
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2007005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2247
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Dielectric Strength	3000 V AC with input to output2000 V AC with input to ground1500 V AC with output to ground
Efficiency At Full Load	85...264 V AC120...375 V DC
Electromagnetic Emission	conducted emissions IEC 61000-6-3radiated emissions IEC 61000-6-4
Inrush Current	45 A 115 V90 A 230 V
Network Frequency Limits	50-60 Hz
Power Dissipation In W	45 W
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Power Supply
Returnability	Yes
Shock Resistance	150 m/s² 11 ms
Status Led	1 LED (Green) output voltage
Total Lifecycle Carbon Footprint	2 252 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	85.5 mm
Customs Code	8504409550
Warranty In Months	18
Functional Unit Description	To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	3942

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Earthing System	TN, TT, IT
Holding Time	> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC
Marking	CE, UKCA
Power Factor	0.95 at 115 V AC, 0.95 at 230 V AC
Supply	SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Certificate Agency	CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, cURus
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.3980073564307327
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 11.899862572189841
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Efficiency	85 % 115 V AC88 % 230 V AC
Electrical Shock Protection Class	class I
Enclosure Material	metal
Load Capacitance	8000 µF
Overvoltage Category	II
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Residual Ripple	200 mV
Service Life	10 year(s) 40 °C 50 % load
Software Version	v6.2.5-6
Sustainable Packaging	No
Vibration Resistance	3 mm (f= 2-9 Hz) conforming to IEC 60068-2-610 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
Database Version	45311
Height Nominal	123.6 mm
Nbr. Of Units In Pkg.	1
Meantime Between Failure Mtbf	at 25 °C, full load conforming to SR 332
Packaging Weight In G	187.5
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	12

Environment Attributes Main

Ambient Air Temperature For Operation	40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m)
Take Back	No
China Rohs Regulation	X
Carbon Footprint	2251.8247839155783
Environmental Disclosure	ENVPEP2007005_V2
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2007005_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Operating Altitude	< 5000 m overvoltage category II, < 5000 m overvoltage category II< 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II, < 5000 m overvoltage category II< 5000 m overvoltage category II, < 5000 m overvoltage category II
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2007005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-18
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type	power supply

Range Of Product	Modicon Power Supply

ETIM

ETIM 8	EC002540
ETIM 10	EC002540

ETIM 9	EC002540

Output Attributes

Output Protection Type	against overload and short-circuits, protection technology: automatic resetagainst over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
Output Voltage	48 V DC
Power Supply Output Current	10 A

Output Coupling	single/parallel by switch
Output Voltage Limits	44…54 V

Input Attributes

Input Protection Type	integrated fuse (not interchangeable) 10 Aexternal protection (recommended) 20 A, external protection (recommended) 16 A, external protection (recommended) 13 A
Efficiency	85 % 115 V AC88 % 230 V AC
