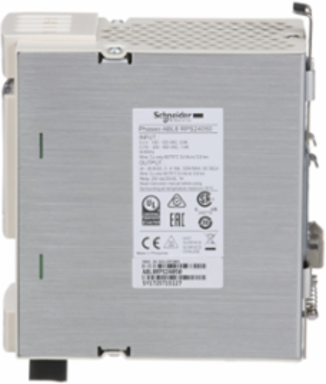

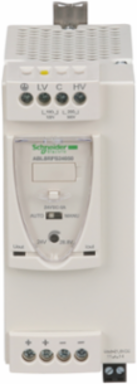

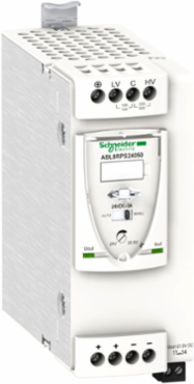

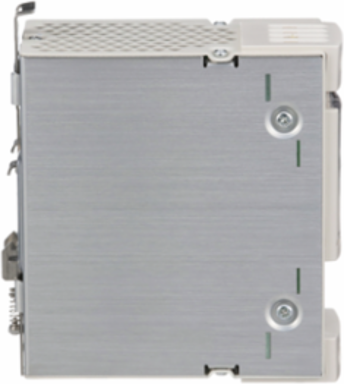

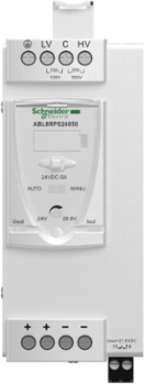

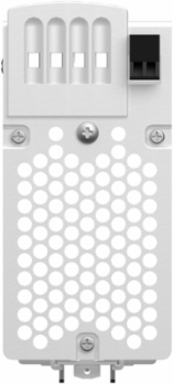

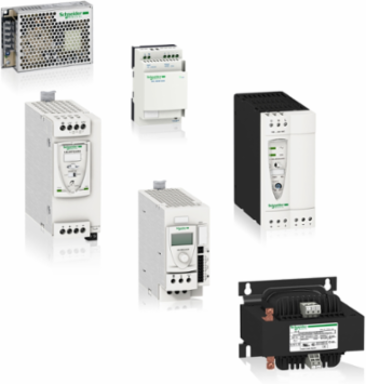

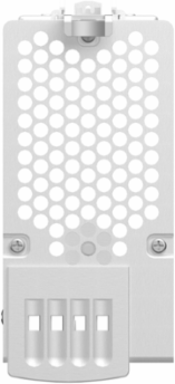

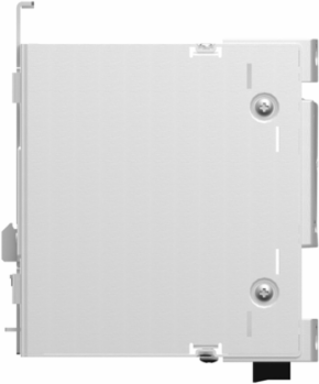

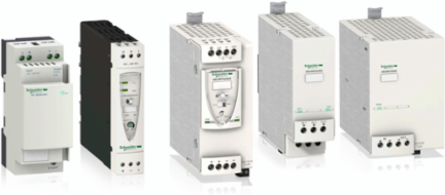

Schneider Electric ABL8RPS24050 Regulated Switch Mode Power Supply 24V 5A, 100-500V AC, DIN Rail Mountable
- MPN: ABL8RPS24050
- PPN: SCH-ABL8RPS24050
CAD
$351.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Engineered for global versatility, the ABL8RPS24050 accepts a wide input voltage range from 100V to 500V AC across single-phase or phase-to-phase connections. This eliminates the need for stocking multiple power supply variants for different regional power grids, allowing industrial control panel builders to standardize on a single unit for international machinery exports.
- Delivering a highly stable 24V DC output at 5 Amps, this regulated switch-mode power supply features low ripple and noise filtration ($\le 200\text{ mV}$). This clean power profile prevents electronic component degradation, ensures precise analog sensor readings, and keeps industrial controllers operating without communication glitches or sudden field restarts.
- Built with intuitive front-facing LED indicators and an integrated diagnostic relay output, this power supply continuously monitors system health. Technicians can instantly verify status via the green/red status lights or route the hardware contact directly to a PLC input, allowing operators to detect overloads, short-circuits, or low-voltage states remotely before it leads to total system downtime.

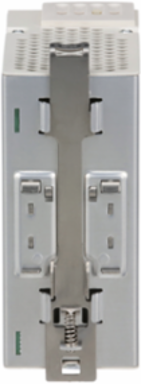

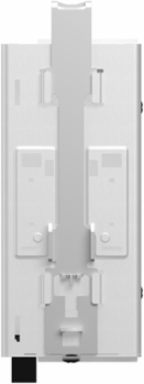

- Housed in a compact, rugged metallic enclosure, the unit features a heavy-duty, integrated spring-loaded clip for standard 35mm DIN-rail mounting. This compact profile saves valuable rail space inside crowded automation enclosures, while its vibration-resistant lock ensures tight mechanical stability near heavy stamping presses, conveyor drives, or structural industrial mixers.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth125 mm
Complementary Attributes
- Rated Power In W
- 120 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Efficiency At Full Load
- 85...132 V AC, 170...550 V AC
- Mounting Support
- 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
- Certificate Agency
- cCSAus, EAC, KC, RCM, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4774469586465792, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.2695966183996101
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 209 kg CO2 eq., 209.2079775893717
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Cr Shelf Life
- 24
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI120913EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Compatibility Code
- ABL8R
- Efficiency
- 87 %
- Marking
- CE
- Permissible Temporary Current Boost
- 1.5 x In for 4 s)
- Power Factor
- 0.51 at 240 V AC0.59 at 120 V AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- power factor correction filter IEC 61000-3-2
- Returnability
- Yes
- Status Led
- 1 LED (green and red) output voltage1 LED (green, red and orange) output current
- Total Lifecycle Carbon Footprint
- 236 kg CO2 eq.
- Pep Code
- ENVPEP061201EN
- Pep Verification Date
- 2025-10-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 143 mm
- Anti-harmonic Filter
- low frequency harmonic currents
- Package Weight(Lbs)
- 906.000 g
- Warranty (In Months)
- 18
- Customs Code
- 8504409520
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Environmental Characteristicsafety conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3safety conforming to IEC 60950-1
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Connections - Terminalsremovable screw terminal block 2 x 2.5 mm², diagnostic relayscrew type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connectionscrew type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connectionscrew type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection, screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) output ground connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.693776192858614, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 24.49896631004006
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Dielectric Strength3500 V with between input and ground4000 V with between input and output500 V with between output and ground
Inrush Current30 A
Operating Positionvertical
Power Dissipation In W15.5 W
Power Supply Typeregulated switch mode
Product Or Component Typepower supply
Range Of ProductModicon Power Supply
Software Versionv6.2.5-6
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo protect and ensure service continuity of an electrical system in industrial atmosphere 34% of the time for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential In %40
Width Nominal56 mm
Nbr. Of Units In Pkg.1
Take-backNo
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1856
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI120913EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP061201EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint236.14776366931656
Environmental DisclosureENVPEP061201EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply
- Range Of Product
- Modicon Power Supply
Provided Equipmentpower factor correction filter IEC 61000-3-2
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540
Output Attributes
- Output Coupling
- parallel, series
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 5 A
Output Protection Typeagainst overload, protection technology: manual or automatic resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic resetagainst undervoltage, protection technology: tripping if U < 21.6 Vthermal, protection technology: automatic reset
Output Voltage Limits24...28.8 V adjustable
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Efficiency At Full Load
- 85...132 V AC, 170...550 V AC
- Efficiency
- 87 %
Input Voltage100...120 V AC single phase N-L1, 200...500 V AC phase to phase L1-L2
