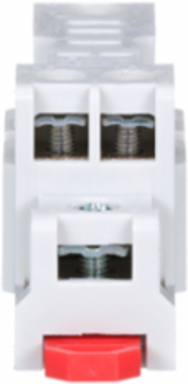

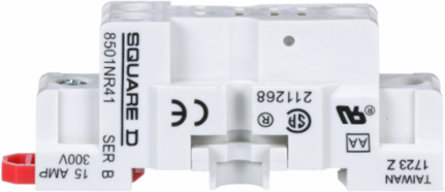

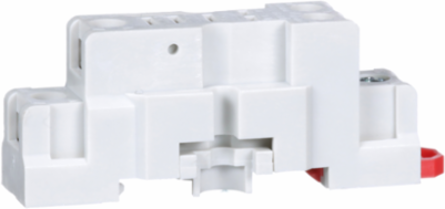

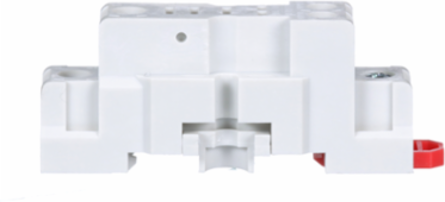

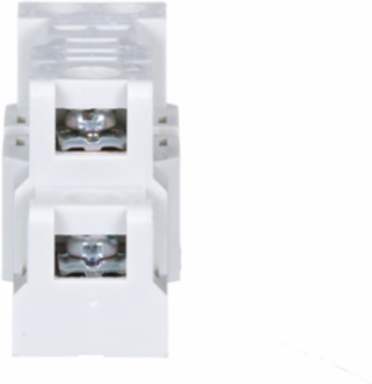

Square D 8501NR41 Relay Socket, Harmony 8501R, 5 pins, double tiered screw clamp terminals, DIN rail/panel mount, 15A, 300V AC
Square D 8501NR41 Relay Socket, Harmony 8501R, 5 pins, double tiered screw clamp terminals, DIN rail/panel mount, 15A, 300V AC
- MPN: 8501NR41
- UPC: 785901137276
- PPN: SCH-8501NR41
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$42.12/ EA
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS41 or 8501RSD41 relay will plug into this relay socket which is designed for 5 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL recognized || CSA || CE
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Height
- 73.02 mm
- Electrical Connection
- double tiered screw clamp terminals
- Shape Of Pin
- spade
- Depth
- 28.95 mm
Mounting SupportDIN rail || panel
Quantity Per Set1
Width20.06 mm
Specifications
- Range Of Product
- 8501N
- Product Or Component Type
- Relay Socket
[In] Rated Current15 A 300 V AC
