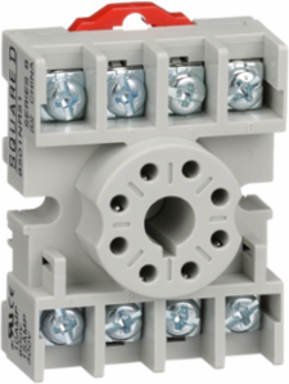

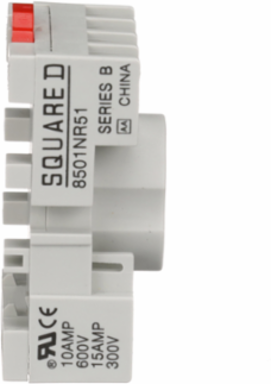

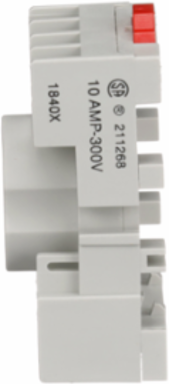

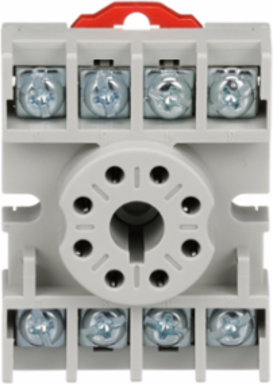

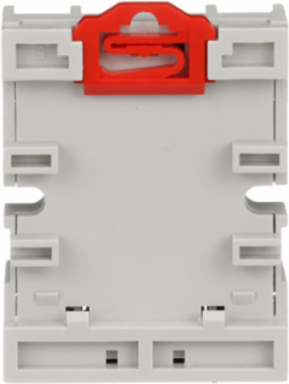

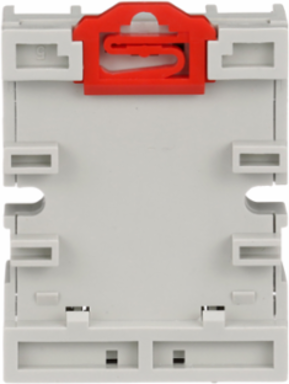

Square D 8501NR51B Harmony Relay Socket, 8 Pins, 15A-300V AC, DIN Rail/Panel Mount, Set of 10
Square D 8501NR51B Harmony Relay Socket, 8 Pins, 15A-300V AC, DIN Rail/Panel Mount, Set of 10
- MPN: 8501NR51B
- UPC: 785901006046
- PPN: SCH-8501NR51B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.29/ EA
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
Specifications
Complementary
- Height
- 54 mm
- Electrical Connection
- single tiered screw clamp terminals
- Width
- 40 mm
Mounting SupportDIN rail || panel
Quantity Per Setset of 10
Depth24.6 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- [In] Rated Current
- 15 A 300 V AC || 5 A 600 V AC
Contractual warranty
- Warranty
- 18 months
