Schneider Electric 70-781D5R-1A Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
Schneider Electric 70-781D5R-1A Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
- MPN: 70-781D5R-1A
- PPN: SCH-70-781D5R-1A
- UNSPSC: 39122335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$17.45/ EA
Description

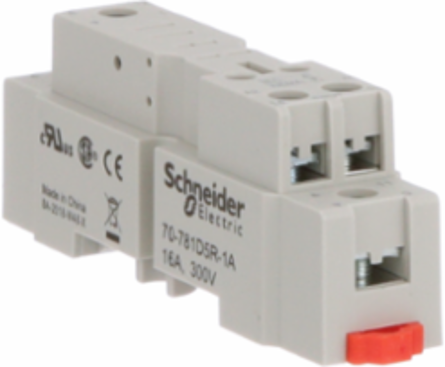

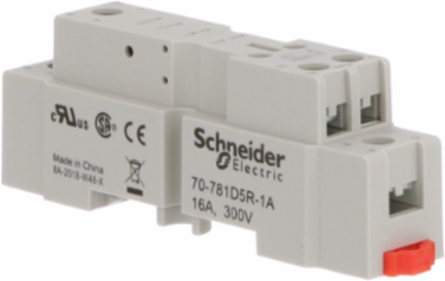

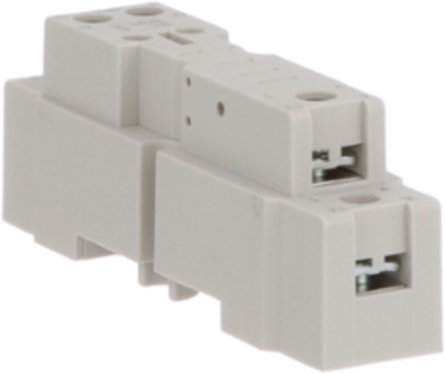

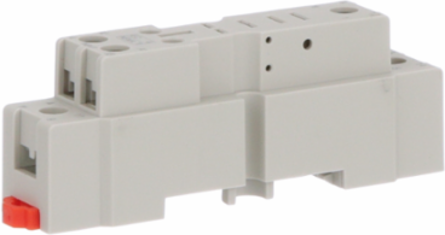

Legacy general purpose relay series accessory , optional socket for 781R series relays with SPDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 5 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Features
- Compatible with plug in control relay Schneider Electric
- It is flexibility design for space-saving
- Easy installation and connect to the relay from its socket
- Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 16 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- by screw M3.5, M3.5 panel, clip-on 35 mm DIN rail
- Carbon Footprint Of The Distribution Phase A4
- 0.0108252618, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Connections Terminals3
- screw clamp terminals flexible, screw clamp terminals solid
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Type And Composition
- 1 NC + 1 NO
- Package Weight Lbs
- 32 g
- Product Or Component Type
- socket
- Returnability
- Yes
- Switch Function
- SPDT
- Ue Rated Operational Voltage2
- 300 V
- Stocking Flag
- N
- Pep Code
- ENVPEP2202006EN
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- End of commerc. announced
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torquescrew < 1 N.m, screw < 0.8 N.m
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0732352452
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.3698354115
Connections Terminalsscrew clamp terminals flexible, screw clamp terminals solid
Local Data StatusPublishable
ManufacturerSquare D
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Flame RetardanceUL94-V0
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Medium DescSocket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US
Contact Terminal Arrangementmixed
Ue Rated Operational Voltage5300 V
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C
- Environmental Disclosure
- ENVPEP2202006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilityrelay 781XAXR, diode 70-BSMD, signalling device 70-BSMLG, suppressor module 70-BSMM
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.4538959185
Ambient Air Temperature For Storage-40-85 °C
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- socket
Range Of ProductLegacy
Specifications
- Depth
- 57 mm
