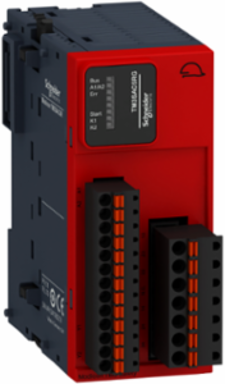

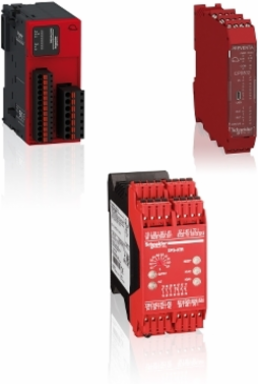

Schneider Electric TM3SAC5RG Modicon TM3 Safety Module, 24V DC, 1 Function, Cat 3 PL d, SIL CL2

  • MPN: TM3SAC5RG
  • PPN: SCH-TM3SAC5RG

CAD

$398.88

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China, Germany, France, United States
Depth73 mm

Complementary Attributes

Maximum Cable Distance Between Devices
30 m
Maximum Switching Voltage
230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening)
Maximum Response Time On Input Open40 ms
Minimum Output Current10 mA relay output

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
Marking
CSA, EAC, CE, RCM, UL, TÜV, EFUP 10
Safety Level
can reach PL d/category 3 ISO 13849-1 2008can reach PL d/category 3 ISO 13849-2 2012, can reach SILCL 2 IEC 62061 2005, can reach SIL 2 IEC 61508 2010
Vibration Resistance
+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
Connections - Terminals
captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.1372649737
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
3 kg CO2 eq., 3.3879730298
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
IDIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1403010EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1845
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Market Segmentation
Industrial
Associated Fuse Rating
4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1
Device Short Name
TM3SAC
Electromagnetic Emission
radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
Mechanical Robustness
bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Power Consumption In W
0.2 W 5 V DC3.6 W 24 V DC
Product Or Component Type
safety module
Resistance To Conducted Disturbances
10 V 0.15...80 MHz IEC 61000-4-6
Resistance To Electrostatic Discharge
8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2
Resistance To Magnetic Fields
30 A/m 50/60 Hz IEC 61000-4-8
Safety Module Application
for emergency stop and switch monitoring
Software Version
EIME v5.7.0.4
Total Lifecycle Carbon Footprint
158 kg CO2 eq.
Pep Code
ENVPEP1403010EN
Pep Verification Date
2018-11-01
Type Of Verification For The Pep
Independent external review
Functional-unit Description
to enhance safety related functionality of the M221, M41 and M251 controllers 100% of the time for 10 years at 3.6W
Functional-unit Unit
unité (unit)
Energy Consumption On Product Lifetime In Kwh
315.36
Energy Model - Installation [A5]
Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; < 1kV; EU-27
Width Nominal
43.7 mm
[Uc] Control Circuit Voltage
24 V DC
[Uimp] Rated Impulse Withstand Voltage
4 kV III IEC 60647-5-1
Nbr. Of Units In Pkg.
1
Take-back
No
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
0.6445
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1753.8
Net Use Of Fresh Water (M3) Operational Energy Use [B6]
560.23
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
2693.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
392.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
392.4
Customs Code
8536509065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop monitoring 1-channel wiring, emergency stop monitoring 2-channel wiring, monitoring of a movable guard with 2 switches and automatic start
Mounting Supporttop hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
Safety Reliability DataDC = 95 % ISO 13849-1SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1, PFHd = 5E-9 1/h IEC 61508-1, PFHd = 30E-9 1/h IEC 61508-1, MTTFd = 500 years ISO 13849-1, MTTFd = 85 years ISO 13849-1
Certificate AgencyUL 61010-2-201, CSA 61010-2-201 (pending), TÜV, EAC, CSA Haz Loc Class 1 Division 2 (pending), ANSI Haz Loc Class 1 Division 2 (pending), RCM
Carbon Footprint Of The Distribution Phase [A4]0.0298042592, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003966161, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]155 kg CO2 eq., 154.51
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Use Carbon Footprint154.51
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Consumption100 mA 24 V DC external supply
Electrical Connectionspring terminal
Local Signalling6 LEDs (green/red) for user
Number Of Safety Circuits3 NO relay instantaneous opening
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon TM3 Safety
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
Resistance To Fast Transients3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4
ReturnabilityNo
Shock Resistance15 gn 11 ms IEC 60068-2-27
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal94 mm
[Ith] Conventional Free Air Thermal Current18 A
[Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1
[Us] Rated Supply Voltage24 V - 15...20 % DC
Package Weight(Lbs)269.000 g
Warranty (In Months)18
Air Pollution (M3) Operational Energy Use [B6]6650.1
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]154.51
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]576.08
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3085.9
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2693.5
Water Pollution (M3) Operational Energy Use [B6]6375.6

Environment Attributes Main

Ambient Air Temperature For Operation
-10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation
Relative Humidity
10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI1403010EN
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic
Yes
Storage Altitude
0-3000 m
Pep Verification Date
2018-11-01
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint158.0654388788
Environmental DisclosureENVPEP1403010EN
Ip Degree Of ProtectionIP20 terminals)IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403010EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type
safety module
Range Of ProductModicon TM3 Safety

ETIM

ETIM 8
EC001449
ETIM 9EC001449

Output Attributes

Minimum Output Current
10 mA relay output
Output Type
relay instantaneous opening, 3 NO, potential free
Output Thermal Current6 A per relay relay output
Output Voltage10 V relay output

Surge Protection And Filtering Attributes

Surge Withstand
1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC

Input Attributes

Input Protection Type
internal, electronic
Synchronisation Time Between Inputs
unlimited
Maximum Response Time On Input Open40 ms
