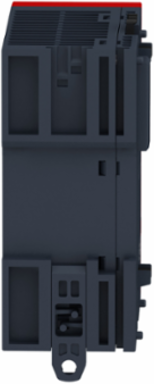

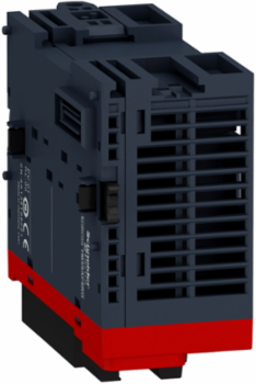

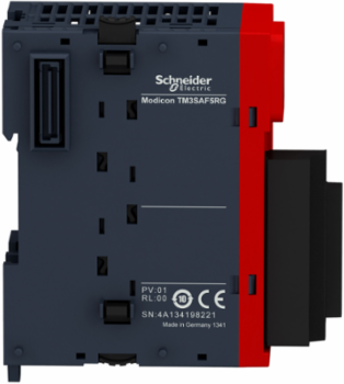

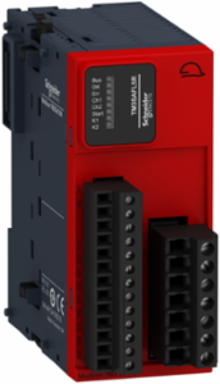

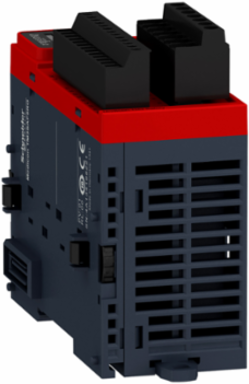

Schneider Electric TM3SAFL5R Modicon TM3 Safety Module, Cat 3 PL d, SIL CL2, 24V DC

MPN: TM3SAFL5R
PPN: SCH-TM3SAFL5R
UNSPSC: 32151705

$445.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This TM3 safety expansion module monitors emergency shutdown pushbuttons, limit switches and light curtains to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It is compatible with emergency push buttons, limit switches and safety light curtains, the 3 most common safety sensors in the industry.

Features

Complete your Modicon M2xx PLC configuration with a dedicated safety I/O, no need to use a complete safety controller
Modularity and easness of installation
Compatible with emergency push-buttons, limit switches and safety light curtains
Removable terminals for easier and better control wires tightening, thus improving installation reliability
Modicon TM3 is an EcoStruxure Machine I/O system
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism
A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, France
Depth	73 mm

Weight	277 g

Complementary Attributes

Maximum Cable Distance Between Devices	30 m
Maximum Switching Voltage	230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening)
Uc Control Circuit Voltage	24 V DC
Uimp Rated Impulse Withstand Voltage	4 kV III IEC 60647-5-1

Maximum Response Time On Input Open	40 ms
Minimum Output Current	10 mA relay output
Ui Rated Insulation Voltage	300 V 2)IEC 60647-5-1
Us Rated Supply Voltage	24 V - 15...20 % DC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
Marking	CE, EFUP 10, UL, CSA, EAC, RCM, TÜV
Safety Level	can reach PL d/category 3 ISO 13849-1 2008can reach PL d/category 3 ISO 13849-2 2012, can reach SILCL 2 IEC 62061 2005, can reach SIL 2 IEC 61508 2010
Vibration Resistance	+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
Certificate Agency	TÜV, RCM, ANSI Haz Loc Class 1 Division 2 (pending), CSA Haz Loc Class 1 Division 2 (pending), EAC, CSA 61010-2-201 (pending), UL 61010-2-201
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.1645991243
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 4.0626343257
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403010EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1845
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Associated Fuse Rating	4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1
Device Short Name	TM3SAFL
Electromagnetic Emission	radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
Mechanical Robustness	bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Power Consumption In W	0.2 W 5 V DC3.6 W 24 V DC
Product Or Component Type	safety module
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2
Resistance To Magnetic Fields	30 A/m 50/60 Hz IEC 61000-4-8
Safety Module Application	for emergency stop, switch and safety light curtain monitoring
Software Version	EIME v5.7.0.4
Total Lifecycle Carbon Footprint	159 kg CO2 eq.
Database Version	2016-11
Height Nominal	94 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	18 A
Functional Unit Description	to enhance safety related functionality of the M221, M41 and M251 controllers 100% of the time for 10 years at 3.6W
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	315.36

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module	emergency stop monitoring 2-channel wiring, with 2 switches and automatic start, monitoring of a movable guard, multiple emergency stop monitoring 2-channel wiringproximity sensor monitoring PNP/PNP, monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Mounting Support	top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
Safety Reliability Data	DC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1
Connections Terminals	captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals, captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals, captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals, captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals, captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals
Carbon Footprint Of The Distribution Phase A4	0.0357393065, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0004755959, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	155 kg CO2 eq., 154.51
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Use Carbon Footprint	154.51
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current Consumption	100 mA 24 V DC external supply
Electrical Connection	screw terminal
Local Signalling	8 LEDs (green/red) for user
Number Of Safety Circuits	3 NO relay instantaneous opening
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon TM3 Safety
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
Resistance To Fast Transients	3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4
Returnability	No
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	43.7 mm
Customs Code	8536410020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation
Relative Humidity	10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1403010EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403010EN
Pcr Version	PCR-ed3-EN-2015 04 02

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	158.7734483525
Environmental Disclosure	ENVPEP1403010EN
Ip Degree Of Protection	IP20 terminals)IEC 60529
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	safety light curtains EN/IEC 61496-1 (type 4)
Storage Altitude	0-3000 m
Pep Verification Date	2018-11-01
Type Of Verification For The Pep	Independent external review
