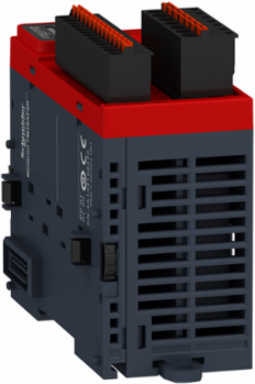

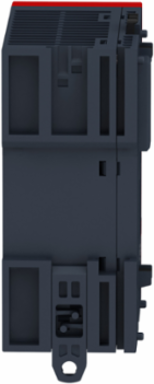

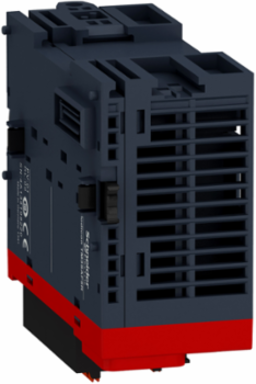

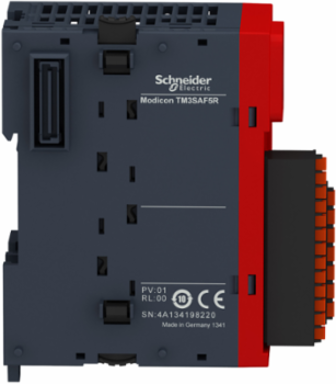

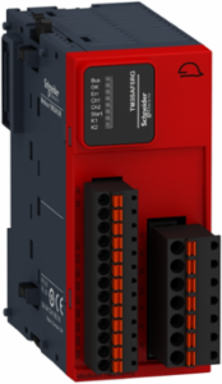

Schneider Electric TM3SAF5RG Modicon TM3 Safety Module, 1 Function, 24V DC, PL e/SIL CL3
- MPN: TM3SAF5RG
- PPN: SCH-TM3SAF5RG
CAD
$433.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Germany, France
Depth73 mm
Complementary Attributes
- Maximum Cable Distance Between Devices
- 30 m
- Maximum Switching Voltage
- 230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening)
Maximum Response Time On Input Open40 ms
Minimum Output Current10 mA relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
- Marking
- EFUP 10, CE, UL, EAC, RCM, CSA, TÜV
- Safety Level
- can reach PL e/category 4 ISO 13849-1 2008can reach PL e/category 4 ISO 13849-2 2012, can reach SILCL 3 IEC 62061 2005, can reach SIL 3 IEC 61508 2010
- Vibration Resistance
- +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
- Connections - Terminals
- captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1396418564
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.4466392294
- Local Data Status
- Publishable
- Return Indicator
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Use Carbon Footprint
- 154.51
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 100 mA 24 V DC external supply
- Electrical Connection
- spring terminal
- Local Signalling
- 8 LEDs (green/red) for user
- Number Of Safety Circuits
- 3 NO relay instantaneous opening
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon TM3 Safety
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
- Resistance To Fast Transients
- 3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 94 mm
- [Ith] Conventional Free Air Thermal Current
- 18 A
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1
- [Us] Rated Supply Voltage
- 24 V - 15...20 % DC
- Package Weight(Lbs)
- 279.000 g
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 6650.1
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 154.51
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 576.08
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 3085.9
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2693.5
- Water Pollution (M3) Operational Energy Use [B6]
- 6375.6
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop monitoring 1-channel wiring, emergency stop monitoring 2-channel wiring, monitoring of a movable guard with 2 switches and automatic start
Mounting Supporttop hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
Safety Reliability DataDC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1
Certificate AgencyANSI Haz Loc Class 1 Division 2 (pending), UL 61010-2-201, EAC, TÜV, RCM, CSA Haz Loc Class 1 Division 2 (pending), CSA 61010-2-201 (pending)
Carbon Footprint Of The Distribution Phase [A4]0.0303203503, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0004034839, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]155 kg CO2 eq., 154.51
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403010EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1
Device Short NameTM3SAF
Electromagnetic Emissionradiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
Mechanical Robustnessbumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Power Consumption In W0.2 W 5 V DC3.6 W 24 V DC
Product Or Component Typesafety module
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Safety Module Applicationfor emergency stop and switch monitoring
Software VersionEIME v5.7.0.4
Total Lifecycle Carbon Footprint158 kg CO2 eq.
Pep CodeENVPEP1403010EN
Pep Verification Date2018-11-01
Type Of Verification For The PepIndependent external review
Functional-unit Descriptionto enhance safety related functionality of the M221, M41 and M251 controllers 100% of the time for 10 years at 3.6W
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh315.36
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal43.7 mm
[Uc] Control Circuit Voltage24 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV III IEC 60647-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]0.6445
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1753.8
Net Use Of Fresh Water (M3) Operational Energy Use [B6]560.23
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2693.5
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]392.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]392.4
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403010EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2018-11-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint158.12700492
Environmental DisclosureENVPEP1403010EN
Ip Degree Of ProtectionIP20 terminals)IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403010EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- safety module
Range Of ProductModicon TM3 Safety
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Output Type
- relay instantaneous opening, 3 NO, potential free
Output Thermal Current6 A per relay relay output
Output Voltage10 V relay output
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC
Input Attributes
- Input Protection Type
- internal, electronic
- Synchronisation Time Between Inputs
- unlimited
Maximum Response Time On Input Open40 ms
