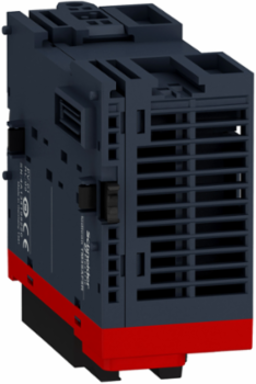

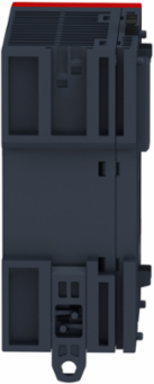

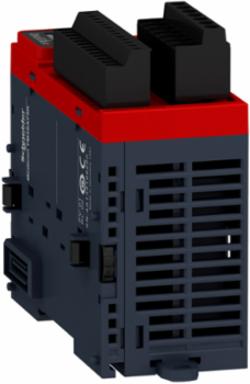

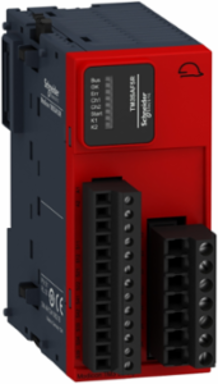

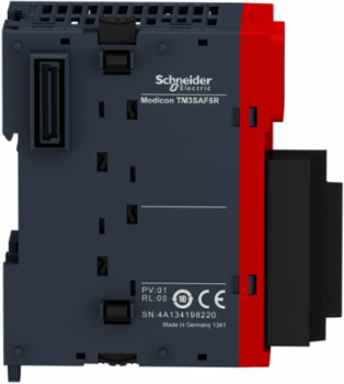

Schneider Electric TM3SAF5R Modicon TM3 Safety Module, 24V DC, 1-Channel, PL e/SIL 3

  • MPN: TM3SAF5R
  • PPN: SCH-TM3SAF5R
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $433.92

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, Germany, France, United States
    Depth73 mm

    Complementary Attributes

    Maximum Cable Distance Between Devices
    30 m
    Maximum Switching Voltage
    230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening)
    Maximum Response Time On Input Open40 ms
    Minimum Output Current10 mA relay output

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Electromagnetic Compatibility
    electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
    Marking
    CE, UL, EFUP 10, EAC, RCM, TÜV, CSA
    Safety Level
    can reach PL e/category 4 ISO 13849-1 2008can reach PL e/category 4 ISO 13849-2 2012, can reach SILCL 3 IEC 62061 2005, can reach SIL 3 IEC 61508 2010
    Vibration Resistance
    +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
    Connections - Terminals
    captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals, captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals, captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals, captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals, captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1403010EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Associated Fuse Rating
    4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1
    Device Short Name
    TM3SAF
    Electromagnetic Emission
    radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
    Mechanical Robustness
    bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
    Power Consumption In W
    0.2 W 5 V DC3.6 W 24 V DC
    Product Or Component Type
    safety module
    Resistance To Conducted Disturbances
    10 V 0.15...80 MHz IEC 61000-4-6
    Resistance To Electrostatic Discharge
    8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2
    Resistance To Magnetic Fields
    30 A/m 50/60 Hz IEC 61000-4-8
    Safety Module Application
    for emergency stop and switch monitoring
    Sustainable Packaging
    No
    Pep Code
    ENVPEP1403010EN
    Width Nominal
    43.7 mm
    [Uc] Control Circuit Voltage
    24 V DC
    [Uimp] Rated Impulse Withstand Voltage
    4 kV III IEC 60647-5-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536410020
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Moduleemergency stop monitoring 1-channel wiring, emergency stop monitoring 2-channel wiring, monitoring of a movable guard with 2 switches and automatic start
    Mounting Supporttop hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
    Safety Reliability DataDC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1
    Certificate AgencyEAC, CSA Haz Loc Class 1 Division 2 (pending), RCM, TÜV, UL 61010-2-201, CSA 61010-2-201 (pending), ANSI Haz Loc Class 1 Division 2 (pending)
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Consumption100 mA 24 V DC external supply
    Electrical Connectionscrew terminal
    Local Signalling8 LEDs (green/red) for user
    Number Of Safety Circuits3 NO relay instantaneous opening
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon TM3 Safety
    Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
    Resistance To Fast Transients3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4
    ReturnabilityNo
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Height Nominal94 mm
    [Ith] Conventional Free Air Thermal Current18 A
    [Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1
    [Us] Rated Supply Voltage24 V - 15...20 % DC
    Package Weight(Lbs)281.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation
    Relative Humidity
    10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP1403010EN
    Ip Degree Of Protection
    IP20 terminals)IEC 60529
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1403010EN
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Circularity ProfileENVEOLI1403010EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Storage Altitude0-3000 m

    General Attributes

    Product Or Component Type
    safety module
    Range Of ProductModicon TM3 Safety

    ETIM

    ETIM 8
    EC001449
    ETIM 9EC001449

    Output Attributes

    Minimum Output Current
    10 mA relay output
    Output Type
    relay instantaneous opening, 3 NO, potential free
    Output Thermal Current6 A per relay relay output
    Output Voltage10 V relay output

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC

    Input Attributes

    Input Protection Type
    internal, electronic
    Synchronisation Time Between Inputs
    unlimited
    Maximum Response Time On Input Open40 ms

    Accessories
