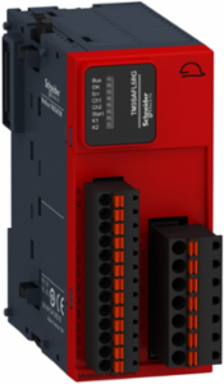

Schneider Electric TM3SAFL5RG Modicon TM3 Safety Module, 24V DC, 3 NO Relay, IP20, 0.19kg
- MPN: TM3SAFL5RG
- PPN: SCH-TM3SAFL5RG
CAD
$445.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The safety module provides 3 normally opened contacts and unlimited synchronisation time between inputs. It is a safety module with a rated supply voltage of 24V DC, an external supply current consumption of 100mA at 24V DC on power supply and a power consumption 0.2W at 5V DC, 3.6W at 24V DC. The main functions of this module are emergency stop, movable guard, multiple emergency stop, proximity sensor and electro-sensitive protection equipment (ESPE) monitoring. It is furnished with spring terminal for electrical connection. It is an IP20 rated product. Its dimensions are 43.7mm (Width) x 73mm (Depth) x 94mm (Height). It weighs 0.19kg. It is suitable for emergency stop, switch and safety light curtain monitoring applications. This product is certified by RCM, CSA, UL, TÜV, ANSI Haz Loc Class 1 Division 2, EAC. It supports wall mount using attached fasteners. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Germany, France, United States |
|---|
| Depth | 73 mm |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | 30 m |
|---|---|
| Maximum Switching Voltage | 230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening) |
| Maximum Response Time On Input Open | 40 ms |
|---|---|
| Minimum Output Current | 10 mA relay output |
Important Information Attributes
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011 |
|---|---|
| Marking | RCM, UL, CSA, EAC, CE, TÜV, EFUP 10 |
| Safety Level | can reach PL d/category 3 ISO 13849-1 2008can reach PL d/category 3 ISO 13849-2 2012, can reach SILCL 2 IEC 62061 2005, can reach SIL 2 IEC 61508 2010 |
| Vibration Resistance | +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6 |
| Connections - Terminals | captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.1556858144 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 3.8426360771 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403010EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1845 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Associated Fuse Rating | 4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1 |
| Device Short Name | TM3SAFL |
| Electromagnetic Emission | radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3 |
| Mechanical Robustness | bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27 |
| Power Consumption In W | 0.2 W 5 V DC3.6 W 24 V DC |
| Product Or Component Type | safety module |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 |
| Resistance To Electrostatic Discharge | 8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2 |
| Resistance To Magnetic Fields | 30 A/m 50/60 Hz IEC 61000-4-8 |
| Safety Module Application | for emergency stop, switch and safety light curtain monitoring |
| Software Version | EIME v5.7.0.4 |
| Total Lifecycle Carbon Footprint | 159 kg CO2 eq. |
| Pep Code | ENVPEP1403010EN |
| Pep Verification Date | 2018-11-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | to enhance safety related functionality of the M221, M41 and M251 controllers 100% of the time for 10 years at 3.6W |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 315.36 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 43.7 mm |
| [Uc] Control Circuit Voltage | 24 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV III IEC 60647-5-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6] | 0.6445 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1753.8 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 560.23 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2693.5 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 392.4 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 392.4 |
| Customs Code | 8536410030 |
| Function Of Module | emergency stop monitoring 2-channel wiring, with 2 switches and automatic start, monitoring of a movable guard, multiple emergency stop monitoring 2-channel wiringproximity sensor monitoring PNP/PNP, monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP |
|---|---|
| Mounting Support | top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners |
| Safety Reliability Data | DC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1 |
| Certificate Agency | CSA 61010-2-201 (pending), RCM, UL 61010-2-201, EAC, ANSI Haz Loc Class 1 Division 2 (pending), CSA Haz Loc Class 1 Division 2 (pending), TÜV |
| Carbon Footprint Of The Distribution Phase [A4] | 0.033803965, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0004498416, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 155 kg CO2 eq., 154.51 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Use Carbon Footprint | 154.51 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Current Consumption | 100 mA 24 V DC external supply |
| Electrical Connection | spring terminal |
| Local Signalling | 8 LEDs (green/red) for user |
| Number Of Safety Circuits | 3 NO relay instantaneous opening |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon TM3 Safety |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance To Fast Transients | 3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4 |
| Returnability | No |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 94 mm |
| [Ith] Conventional Free Air Thermal Current | 18 A |
| [Ui] Rated Insulation Voltage | 300 V 2)IEC 60647-5-1 |
| [Us] Rated Supply Voltage | 24 V - 15...20 % DC |
| Package Weight(Lbs) | 262.0 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Operational Energy Use [B6] | 6650.1 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 154.51 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 576.08 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 3085.9 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2693.5 |
| Water Pollution (M3) Operational Energy Use [B6] | 6375.6 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403010EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1403010EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 158.542575698 |
| Environmental Disclosure | ENVPEP1403010EN |
| Ip Degree Of Protection | IP20 terminals)IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | safety light curtains EN/IEC 61496-1 (type 4) |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2018-11-01 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | safety module |
|---|
| Range Of Product | Modicon TM3 Safety |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Minimum Output Current | 10 mA relay output |
|---|---|
| Output Type | relay instantaneous opening, 3 NO, potential free |
| Output Thermal Current | 6 A per relay relay output |
|---|---|
| Output Voltage | 10 V relay output |
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC |
|---|
Input Attributes
| Input Protection Type | internal, electronic |
|---|---|
| Synchronisation Time Between Inputs | unlimited |
| Maximum Response Time On Input Open | 40 ms |
|---|
