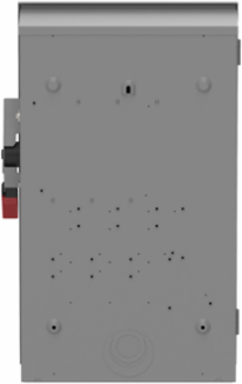

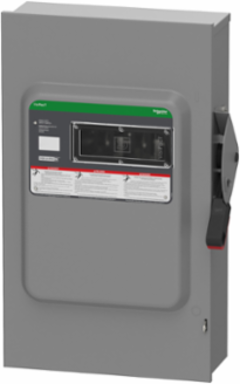

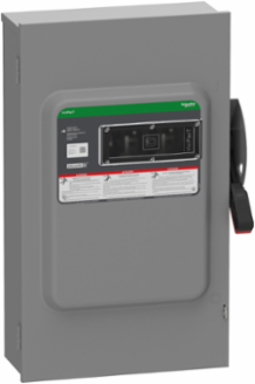

Square D VH364RGL Heavy Duty Safety Switch, 3 Pole, 200A, 600V, NEMA 3R
- MPN: VH364RGL
- PPN: SCH-VH364RGL
CAD
$1620.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's heavy-duty safety switch is engineered to meet the rigorous demands of industrial applications while ensuring robust safety for electrical systems. This three-pole switch operates at a substantial 200A and is rated for 600V, making it suitable for high-capacity electrical circuits. With a NEMA 3R enclosure, it offers reliable protection against environmental conditions, allowing for both indoor and outdoor installations. This safety switch is designed for efficiency and reliability, providing peace of mind in power distribution and equipment protection.
Features
- Engineered with a rugged NEMA 3R rainproof galvannealed steel enclosure, this safety switch is built to withstand demanding outdoor conditions and corrosive industrial environments. This ensures long-term structural integrity and uninterrupted service, eliminating the cost of premature replacements due to weather wear.
- The factory-installed glass viewing window allows electrical contractors and plant operators to visually confirm the blade position at a glance while the door remains securely locked. This feature dramatically improves facility safety compliance and streamlines routine lockout/tagout (LOTO) procedures by minimizing the need for open-door inspections.
- Featuring a heavy-duty 3-pole, 3-wire configuration rated for 200 Amps at 600V AC/DC, this disconnect safely controls industrial machinery and heavy equipment up to 150 horsepower. It provides reliable, continuous power isolation that prevents electrical failures under heavy mechanical strain.
- The terminal connectors safely accommodate a wide wire range from AWG 6 up to 250 kcmil in both copper and aluminum, ensuring complete physical compatibility with standard commercial branch feeders.
- Built with a robust quick-make, quick-break operating mechanism and a dual-cover safety interlock, the internal hardware is engineered to exceed NEMA KS1 durability standards by three times. This commercial-grade endurance prevents contact pitting and ensures smooth, repeatable emergency power interruption across a multi-decade operational lifespan.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 200 A
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J
- Fuse Type
- H or K, R or J
- Number of Poles
- 3
- Wire Size
- AWG 6 to 250 kcmil copper or aluminum
- Dimensions (Depth x Width x Height)
- 8.506 in x 17.016 in x 28.94 in
- Mounting Type
- Surface
- Enclosure Rating
- NEMA 3R galvannealed steel
- Compliance
- EU RoHS Compliant; REACH SVHC Free; China RoHS X
Voltage Rating600 V AC/DC
Motor Power50 Hp at 480 V AC, 60 Hz; 125 Hp at 480 V AC, 60 Hz; 60 Hp at 600 V AC, 60 Hz; 150 Hp at 600 V AC, 60 Hz; 40 Hp at 250 V DC; 50 Hp at 600 V DC
Disconnect TypeFusible disconnect
Duty RatingHeavy duty
Tightening Torque275 lbf.in (31.07 N.m)
Net Weight25.17 kg (55.49 lb)
Electrical ConnectionLugs
CertificationsUL Listed E2875
Country of OriginUS
