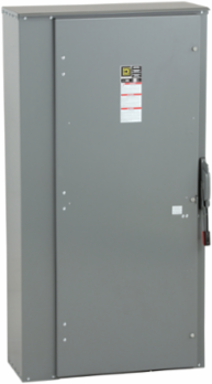

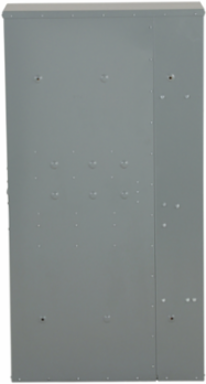

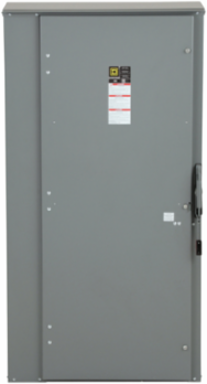

Square D H368R Heavy Duty Safety Switch 600V 1200A 3P NEMA 3R, 36.62 Inch Width, 69.13 Inch Height
- MPN: H368R
- UPC: 785901259329
- PPN: SCH-H368R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for heavy-duty applications, this safety switch from Schneider Electric is engineered to provide reliable performance and robust protection in demanding environments. With a rated operational voltage of 600V and a current capacity of 1200A across three phases, it is suitable for a variety of industrial settings. The switch features a durable NEMA 3R enclosure made from galvannealed steel, ensuring it can withstand harsh conditions while maintaining safety standards. Weighing in at 169.2 kg, its substantial build is complemented by an efficient 4-wire configuration, making it an essential component for any serious electrical system. Additionally, this product is UL listed and adheres to sustainability standards, highlighting its commitment to both safety and environmental responsibility.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typefusible disconnect
[In] Rated Current1200 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 69.13 in
- Tightening Torque
- 375-375 lbf.in 85.01-380 mm² AWG 3/0...750 kcmil)
- Electrical Connection
- lugs
- Wiring Configuration
- 4-wire (3P + N)
- Depth
- 17.75 in
- Short-Circuit Current
- 200 kA maximum for L
Device Mountingsurface
Fuse TypeL
Awg GaugeAWG 3/0...750 kcmil copper or aluminum
Width36.62 in
Net Weight169.2 kg
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
