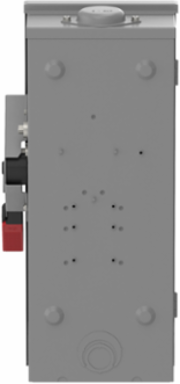

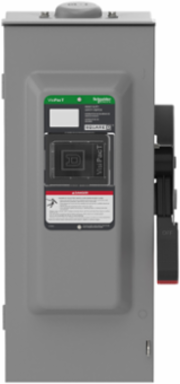

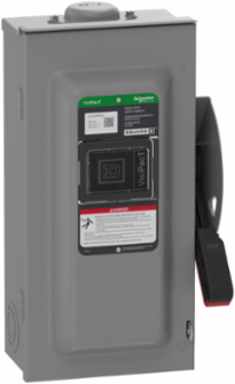

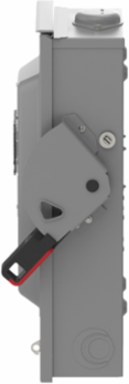

Square D VH323BRBGL Heavy Duty Fused Safety Switch, 100A, 3 Pole, NEMA 3R, 240V
- MPN: VH323BRBGL
- PPN: SCH-VH323BRBGL
CAD
$817.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric VH323BRBGL Heavy Duty Fused Safety Switch is engineered for robust performance in demanding environments. With a capacity of 100A and three poles, this switch ensures reliable electrical distribution at 240V, while its NEMA 3R rating provides added durability against moisture and outdoor conditions. Ideal for industrial applications, this safety switch not only enhances operational safety but also contributes to efficient power management, making it a vital component in any heavy-duty electrical system. Its sturdy design and reliable functionality stand out, ensuring peace of mind in critical operations.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 100 A
- Short-Circuit Current
- 200 kA
- Device Application
- Heavy Application
- Disconnector Device Type
- Fusible Disconnect
- Electrical Connection
- Lugs
- Wire Size
- AWG 12...AWG 1/0 aluminum, AWG 14...AWG 1/0 copper
- Dimensions (Depth x Width x Height)
- 7.019 in x 9.08 in x 22.103 in
- NEMA Degree Of Protection
- NEMA 3R galvannealed steel
- Product Certifications
- UL Listed (file E2875)
- Duty Rating
- Heavy Duty
- Country of Origin
- US
- China RoHS Regulation
- Compliant
Rated Operational Voltage250 V DC, 240 V AC
Number of Poles3
Fuse TypeJ
Mounting TypeSurface
Wiring Configuration4-wire (3P + N)
Tightening Torque50 lbf.in (AWG 1...AWG 3/0), 45 lbf.in (AWG 6...AWG 4), 40 lbf.in (AWG 8), 35 lbf.in (AWG 14...AWG 10)
Net Weight9 kg (19.84 lb)
Device CompositionNeutral (factory bonded)
Condition Of UseSuitable for USA and Canada service entrance
Series NameHeavy Duty
Reach RegulationFree of SVHC above threshold
EU RoHS DirectiveCompliant
