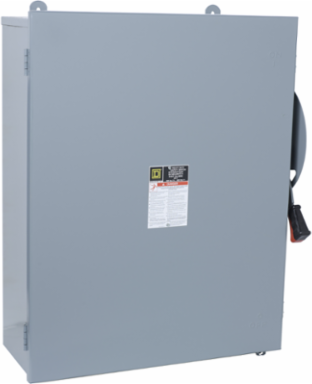

Square D HU664AWK Heavy Duty Safety Switch 600V 200A NEMA 3R 6 Poles 29 Inch Height
- MPN: HU664AWK
- UPC: 785901396765
- PPN: SCH-HU664AWK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 3R/12 galvannealed steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 6
Disconnector Device Typenon-fusible disconnect
[In] Rated Current200 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC
Complementary
- Height
- 29 in
- Tightening Torque
- 275-275 lbf.in 13.3-127 mm² AWG 6...250 kcmil)
- Awg Gauge
- AWG 6...250 kcmil copper or aluminum
- Wiring Configuration
- 6-wire
- Net Weight
- 37.42 kg
Device Mountingsurface
Electrical Connectionlugs
Width24.88 in
Depth8.75 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305005EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
