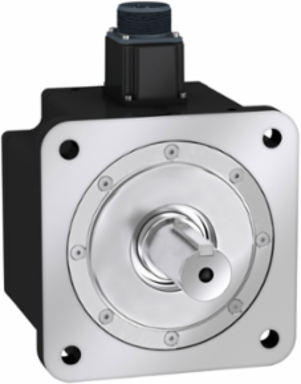

Schneider Electric BCH2MR2023CA6C servo motor BCH, Lexium 28, 180mm, 2000W, 26.5kg.cm², with oil seal, with key, straight connection
Schneider Electric BCH2MR2023CA6C servo motor BCH, Lexium 28, 180mm, 2000W, 26.5kg.cm², with oil seal, with key, straight connection
- MPN: BCH2MR2023CA6C
- PPN: SCH-BCH2MR2023CA6C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2045.52/ EA
Description
servo motor BCH, Lexium 28, 180mm, 2000W, 26.5kg.cm², with oil seal, with key, straight connection
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 200 mm
- Continuous Power
- 2000 W
- Product Compatibility
- LXM26D servo drive 2 kW, 220 V, three phase || LXM28... servo drive 2 kW, 220 V, three phase
- Maximum Radial Force Fr
- 1200 N 2000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 26.5 kg.cm²
- Maximum Axial Force Fa
- 497 N
- Holding Brake
- without
- Brake Pull-In Power
- 49.6 W
- Maximum Current Irms
- 35.4 A 2 kW, 220 V || 35.4 A LXM28... 2 kW, 220 V
- Net Weight
- 13 kg
- Stator Inductance
- 8.86 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V
- Peak Stall Torque
- 28.65 N.m LXM26D 12 A, 220 V, three phase || 28.65 N.m LXM28... 12 A, 220 V, three phase || 28.65 N.m
- Distance Shaft Shoulder-Flange
- 4 mm
- Key Width
- 10 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 2000 rpm || 2000 rpm LXM26D 12 A, 220 V, three phase || 2000 rpm LXM28... 12 A, 220 V, three phase
- Stator Resistance
- 0.572 Ohm 20 °C
- Nominal Torque
- 9.55 N.m LXM26D 12 A, 220 V, three phase || 9.55 N.m LXM28... 12 A, 220 V, three phase || 9.55 N.m
- Continuous Stall Torque
- 9.55 N.m LXM26D 12 A, 220 V, three phase || 9.55 N.m LXM28... 12 A, 220 V, three phase || 9.55 N.m
Maximum Permanent Current9.6 A
Maximum Mechanical Speed3000 rpm
Stator Electrical Time Constant15.49 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks1
Back Emf Constant66 V/krpm 20 °C
Centring Collar Depth4 mm
Shaft Length79 mm
Network Number Of Phasesthree phase
Length169 mm
Centring Collar Diameter114.3 mm
Motor Flange Size180 mm
Nominal Output Power2000 W LXM26D 12 A, 220 V, three phase || 2000 W LXM28... 12 A, 220 V, three phase || 2000 W
Number Of Mounting Holes4
Shaft Diameter35 mm
Mounting Holes Diameter13.5 mm
Shaft Endkeyed
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current8.75 A
Torque Constant1.09 N.m/A 20 °C
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
