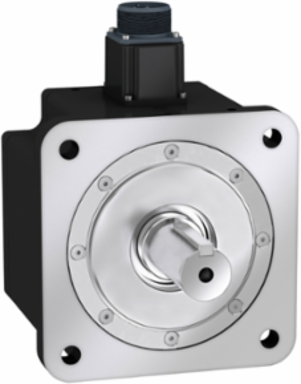

Schneider Electric BCH2MR4513CA6C Lexium 28 Servo Motor 180mm, 4500W, 3000RPM, 23.64kg
- MPN: BCH2MR4513CA6C
- PPN: SCH-BCH2MR4513CA6C
CAD
$4132.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lexium 28 Servo Motor 180mm, 4500W, 3000RPM, 23.64kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Mexico, Sweden
Physical Attributes
- Key Width
- 10 mm
- Shaft Length
- 79 mm
Motor Flange Size180 mm
Complementary Attributes
- Maximum Current Irms
- 57.6 A LXM26D 4.5 kW, 220 V, 57.6 A LXM28... 4.5 kW, 220 V, 61.0 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Permanent Current
- 22.8 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current22.8 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 1500 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 0.0 kg.cm² of brake, 73.31 kg.cm² of motor
- Nominal Torque
- 28.65 N.m half speed, 28.65 N.m full speed, 28.65 N.m LXM26D 22.9 A, 220 V, three phase, 28.65 N.m LXM28... 22.9 A, 220 V, three phase
- Saturation Coefficient
- -3.8243890773E-18, -3.8243890773E-18
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.7043941031
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 144 kg CO2 eq., 144.3164035874
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2444
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 114.3 mm
- Coefficient 1 2
- 5.62440546E-19 N.m/rpm²
- Coefficient 1 6
- 3.2E-34 N.m/rpm6
- Coefficient 2 1
- 8.75000000000026E-06 N.m/rpm
- Continuous Stall Current
- 19.68 A
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Feedback Type
- 20 bits single turn absolute encoder
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- asian standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 35 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 19.1 ms 20 °C
- Stator Resistance
- 0.199 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 14 878 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 30059.494
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 220 V
- Brake Pull-in Power
- 49.6 W
- Maximum [In] Rated Current
- 22.8 A
- Package Weight(Lbs)
- 26.644 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque28.65 N.m LXM26D 22.9 A, 220 V, three phase, 28.65 N.m LXM28 22.9 A, 220 V, three phase
Nominal Speed1500 rpm LXM26D 22.9 A, 220 V, three phase, 1500 rpm LXM28... 22.9 A, 220 V, three phase, 1500 rpm
Peak Stall Torque71.62 N.m LXM26D 22.9 A, 220 V, three phase, 71.62 N.m LXM28... 22.9 A, 220 V, three phase
Carbon Footprint Of The Distribution Phase [A4]3.2488410314, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1604858027, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]14 728 kg CO2 eq., 14727.5518380588
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes200 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power4500 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewithout
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter13.5 mm
Network Number Of Phases3
Number Of Motor Stacks3
Peak Nominal Torque71.62 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia73.32 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance3.8 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.46 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total235 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Product Compatibility
- LXM26D servo drive 4.5 kW, 220 V, three phase, LXM28... servo drive 4.5 kW, 220 V, three phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1504002EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint14877.9819625834
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 4500 W LXM26D 22.9 A, 220 V, three phase, 4500 W LXM28... 22.9 A, 220 V, three phase
Output Current 3s Peak61.0 A
