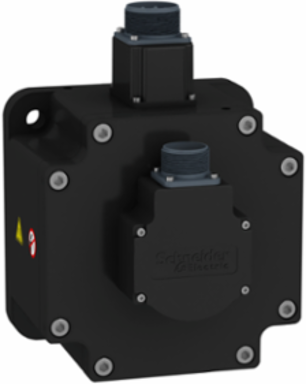

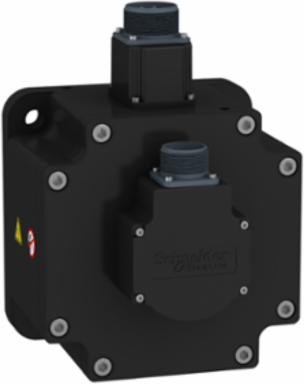

Schneider Electric BCH2MR3023CF6C Servo Motor 180mm 3000W 54.1kg.cm2 Keyed with Brake

  • MPN: BCH2MR3023CF6C
  • PPN: SCH-BCH2MR3023CF6C

CAD

$4111.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This powerful servo motor from Schneider Electric is designed to enhance precision in motion control applications. With a robust output of 3000 watts and a torque rating of 54.1 kg.cm2, it ensures reliable performance for demanding automation tasks. The 180mm frame size and keyed design further enhance its adaptability, allowing for seamless integration into various systems. Additionally, this model includes a built-in brake, adding an extra layer of safety and control during operation, which is essential for industrial environments that require both performance and reliability.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Mexico, Sweden

Physical Attributes

Key Width10 mm
Shaft Length79 mm
Motor Flange Size180 mm

Complementary Attributes

Maximum Current Irms53.9 A LXM26D 3 kW, 220 V, 53.9 A LXM28... 3 kW, 220 V, 56.0 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current18.8 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current18.8 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 2000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM26D 19.8 A, 220 V, three phase, LXM28... 19.8 A, 220 V, three phase, 2000 rpm
Peak Stall Torque42.97 N.m LXM26D 19.8 A, 220 V, three phase, 42.97 N.m LXM28... 19.8 A, 220 V, three phase
Carbon Footprint Of The Distribution Phase [A4]3.1778774664, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1569803543, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]8 236 kg CO2 eq., 8235.9056577847
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes200 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power3000 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewith
Inertia54.09 kg.cm² of brake54.1 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter13.5 mm
Network Number Of Phases3
Number Of Motor Stacks2
Peak Nominal Torque42.97 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia54.1 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance2.71 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.88 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total235 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque14.32 N.m LXM26D 19.8 A, 220 V, three phase, 14.32 N.m LXM28 19.8 A, 220 V, three phase
Nominal Torque14.32 N.m half speed, 14.32 N.m full speed, 14.32 N.m LXM26D 19.8 A, 220 V, three phase, 14.32 N.m LXM28... 19.8 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.6453227466
Carbon Footprint Of The Manufacturing Phase [A1 To A3]141 kg CO2 eq., 141.1641390135
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter114.3 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current16.33 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque48 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter35 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant20.61 ms 20 °C
Stator Resistance0.131 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint8 383 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh16809.797
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage220 V
Brake Pull-in Power49.6 W
Maximum [In] Rated Current18.8 A
Package Weight(Lbs)24630 g
Warranty (In Months)18

Environment Attributes Main

Product CompatibilityLXM26D servo drive 3 kW, 220 V, three phase, LXM28... servo drive 3 kW, 220 V, three phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint8383.0499773654
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power3000 W LXM26D 19.8 A, 220 V, three phase, 3000 W LXM28... 19.8 A, 220 V, three phase
Output Current 3s Peak56.0 A
Servo Motor 180mm 3000W 54.1kg.cm2 Keyed with Brake
