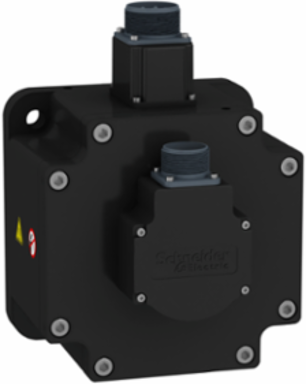

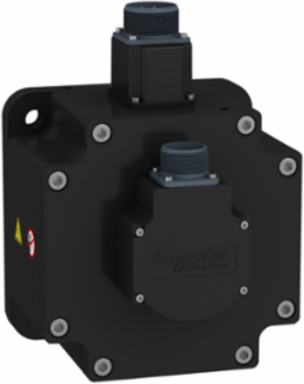

Schneider Electric BCH2MR3523CF6C Lexium 28 Servo Motor 180mm 3500W 54.1kg.cm2
- MPN: BCH2MR3523CF6C
- PPN: SCH-BCH2MR3523CF6C
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for high-performance applications, the Lexium 28 Servo Motor by Schneider Electric stands out with its robust capabilities. Delivering a powerful 3500W output, this motor operates efficiently and effectively within automation and control settings. Its impressive torque rating of 54.1 kg.cm2 ensures reliable motion control, making it an essential component for sophisticated machinery and systems that require precision. Designed for versatility, it integrates seamlessly into various motion control solutions, enhancing both productivity and performance in industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Physical Attributes
- Key Width
- 10 mm
- Shaft Length
- 79 mm
Motor Flange Size180 mm
Complementary Attributes
- Maximum Current Irms
- 57.8 A LXM26D 3.5 kW, 220 V, 57.8 A LXM28... 3.5 kW, 220 V, 61.0 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Permanent Current
- 19 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current19.3 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 2000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM26D 22.9 A, 220 V, three phase, LXM28... 22.9 A, 220 V, three phase, 2000 rpm
- Peak Stall Torque
- 50.3 N.m LXM26D 22.9 A, 220 V, three phase, 50.3 N.m LXM28... 22.9 A, 220 V, three phase
- Carbon Footprint Of The Distribution Phase [A4]
- 3.1778774664, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1569803543, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 050 kg CO2 eq., 9049.6572596157
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 200 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 3500 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- connector MIL
- Holding Brake
- with
- Inertia
- 54.09 kg.cm² of brake54.1 kg.cm² of motor
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 13.5 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 2
- Peak Nominal Torque
- 50.3 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Rotor Inertia
- 54.1 kg.cm²
- Shaft End
- keyed
- Software Version
- EIME v5.6.0.1
- Stator Inductance
- 2.57 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 1.01 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Length Total
- 235 mm
- Accuracy Error [Angular]
- 0.044 °
- Distance Shaft Shoulder-flange
- 4 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501524000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque16.7 N.m LXM26D 22.9 A, 220 V, three phase, 16.7 N.m LXM28 22.9 A, 220 V, three phase
Nominal Torque16.7 N.m half speed, 16.7 N.m full speed, 16.7 N.m LXM26D 22.9 A, 220 V, three phase, 16.7 N.m LXM28... 22.9 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.6453227466
Carbon Footprint Of The Manufacturing Phase [A1 To A3]141 kg CO2 eq., 141.1641390135
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter114.3 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current16.55 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque48 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter35 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant18.66 ms 20 °C
Stator Resistance0.157 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint9 197 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh18470.695
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage220 V
Brake Pull-in Power49.6 W
Maximum [In] Rated Current19.3 A
Package Weight(Lbs)24630 g
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- LXM26D servo drive 3.5 kW, 220 V, three phase, LXM28... servo drive 3.5 kW, 220 V, three phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-40 °C
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP50 IM V3IP65 IM B5, IM V1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint9196.8015791964
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 3500 W LXM26D 22.9 A, 220 V, three phase, 3500 W LXM28... 22.9 A, 220 V, three phase
Output Current 3s Peak61.0 A
