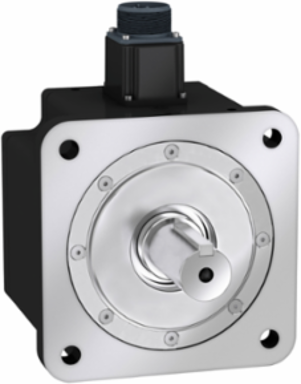

Schneider Electric BCH2MR3523CA6C Servo Motor, Lexium 28, 180 mm, 3500 W, 18.5 kg

  • MPN: BCH2MR3523CA6C
  • PPN: SCH-BCH2MR3523CA6C

CAD

$3611.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric BCH2MR3523CA6C Servo Motor, part of the Lexium 28 series, is engineered for precision and performance in motion control applications. With a power output of 3500 W and a compact length of 180 mm, this servo motor is designed to deliver efficient and reliable operation, making it suitable for various automation tasks. Weighing 18.5 kg, it combines robust construction with advanced technology, ensuring seamless integration into your automation and control systems for optimized control and responsiveness.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Sweden

Physical Attributes

Key Width10 mm
Shaft Length79 mm
Motor Flange Size180 mm

Complementary Attributes

Maximum Current Irms57.8 A LXM26D 3.5 kW, 220 V, 57.8 A LXM28... 3.5 kW, 220 V, 61.0 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current19 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current19.3 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 2000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM26D 22.9 A, 220 V, three phase, LXM28... 22.9 A, 220 V, three phase, 2000 rpm
Peak Stall Torque50.3 N.m LXM26D 22.9 A, 220 V, three phase, 50.3 N.m LXM28... 22.9 A, 220 V, three phase
Carbon Footprint Of The Distribution Phase [A4]2.603717713, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1286180897, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 050 kg CO2 eq., 9049.6572596157
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes200 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power3500 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewithout
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter35 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant18.66 ms 20 °C
Stator Resistance0.157 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint9 170 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh18470.695
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage220 V
Brake Pull-in Power49.6 W
Maximum [In] Rated Current19.3 A
Package Weight(Lbs)20180 g
Warranty (In Months)18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque16.7 N.m LXM26D 22.9 A, 220 V, three phase, 16.7 N.m LXM28 22.9 A, 220 V, three phase
Nominal Torque16.7 N.m half speed, 16.7 N.m full speed, 16.7 N.m LXM26D 22.9 A, 220 V, three phase, 16.7 N.m LXM28... 22.9 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.1673817713
Carbon Footprint Of The Manufacturing Phase [A1 To A3]116 kg CO2 eq., 115.6594529148
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter114.3 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current16.55 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake53.55 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter13.5 mm
Network Number Of Phases3
Number Of Motor Stacks2
Peak Nominal Torque50.3 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia53.56 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance2.57 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.01 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total202 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000

Environment Attributes Main

Ambient Air Temperature For Operation-20-40 °C, -20-40 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint9170.2164301044
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Product CompatibilityLXM26D servo drive 3.5 kW, 220 V, three phase, LXM28... servo drive 3.5 kW, 220 V, three phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power3500 W LXM26D 22.9 A, 220 V, three phase, 3500 W LXM28... 22.9 A, 220 V, three phase
Output Current 3s Peak61.0 A
Servo Motor, Lexium 28, 180 mm, 3500 W, 18.5 kg
