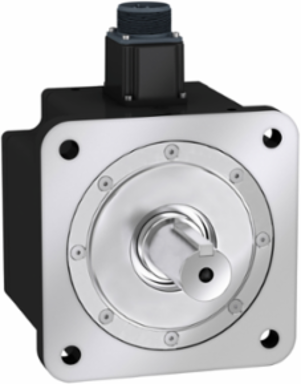

Schneider Electric BCH2MR3023CA6C Lexium 28 Servo Motor 180mm 3000W IP50/IP65
Schneider Electric BCH2MR3023CA6C Lexium 28 Servo Motor 180mm 3000W IP50/IP65
- MPN: BCH2MR3023CA6C
- PPN: SCH-BCH2MR3023CA6C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2496.14/ EA
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 16.33A and a continuous power of 3000W. The shaft dimensions are 35mm (diameter) x 79mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 202mm and the centering collar dimensions are 4mm (depth) x 114.3mm (diameter) with 200mm mounting hole. It weighs 18.5kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 3kW 220V three phase. It supports 180mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 200 mm
- Continuous Power
- 3000 W
- Product Compatibility
- LXM26D servo drive 3 kW, 220 V, three phase || LXM28... servo drive 3 kW, 220 V, three phase
- Maximum Radial Force Fr
- 1200 N 2000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 53.56 kg.cm²
- Maximum Axial Force Fa
- 497 N
- Holding Brake
- without
- Brake Pull-In Power
- 49.6 W
- Maximum Current Irms
- 53.9 A LXM26D 3 kW, 220 V || 53.9 A LXM28... 3 kW, 220 V
- Net Weight
- 18.5 kg
- Stator Inductance
- 2.7 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V
- Peak Stall Torque
- 42.97 N.m LXM26D 19.8 A, 220 V, three phase || 42.97 N.m LXM28... 19.8 A, 220 V, three phase
- Distance Shaft Shoulder-Flange
- 4 mm
- Key Width
- 10 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 2000 rpm LXM26D 19.8 A, 220 V, three phase || 2000 rpm LXM28... 19.8 A, 220 V, three phase
- Stator Resistance
- 0.131 Ohm 20 °C
- Nominal Torque
- 14.32 N.m LXM26D 19.8 A, 220 V, three phase || 14.32 N.m LXM28... 19.8 A, 220 V, three phase
- Continuous Stall Torque
- 14.32 N.m LXM26D 19.8 A, 220 V, three phase || 14.32 N.m LXM28... 19.8 A, 220 V, three phase
Maximum Permanent Current18.8 A
Maximum Mechanical Speed3000 rpm
Stator Electrical Time Constant20.61 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks2
Back Emf Constant53 V/krpm 20 °C
Centring Collar Depth4 mm
Shaft Length79 mm
Network Number Of Phasesthree phase
Length202 mm
Centring Collar Diameter114.3 mm
Motor Flange Size180 mm
Nominal Output Power3000 W LXM26D 19.8 A, 220 V, three phase || 3000 W LXM28... 19.8 A, 220 V, three phase
Number Of Mounting Holes4
Shaft Diameter35 mm
Mounting Holes Diameter13.5 mm
Shaft Endkeyed
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current16.33 A
Torque Constant0.88 N.m/A 20 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
