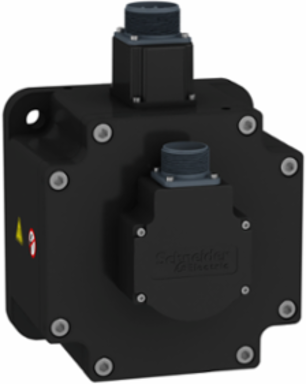

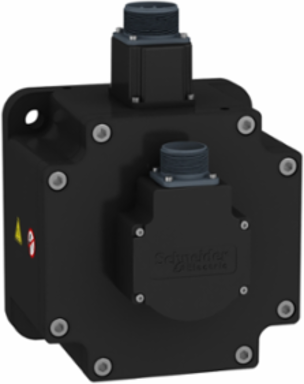

Schneider Electric BCH2MR4513CF6C Servo Motor, 180mm, 4500W, 28.65 N.m Torque, Keyed
- MPN: BCH2MR4513CF6C
- PPN: SCH-BCH2MR4513CF6C
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for excellence in motion control applications, the Schneider Electric BCH2MR4513CF6C Servo Motor is a robust solution that offers up to 4500W of power and an impressive torque of 28.65 N.m. With a size of 180mm, this motor is designed to provide precise control and reliable performance, making it an ideal choice for various automation and control systems. Its keyed design ensures secure integration into your existing setups, translating to enhanced operational efficiency and consistency in demanding environments. This servo motor stands out as a dependable component for powering advanced motion control tasks.
Documentation & Downloads
Specifications
Additional
- Power
- 4500 W
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Permanent Current
- 22.8 A
- Torque
- 28.65 N.m
- Continuous Stall Torque
- 28.65 N.m
- Torque Constant
- 1.46 N.m/A 20 °C
- Stator Resistance
- 0.199 Ohm 20 °C
- Phase
- Three phase
- Shaft Diameter
- 35 mm
- Shaft End
- Keyed
- Length
- 279 mm
- Number Of Motor Stacks
- 3
- Centring Collar Depth
- 4 mm
- Mounting Holes Diameter
- 13.5 mm
- Distance Shaft Shoulder-Flange
- 4 mm
- Electrical Connection
- Connector MIL
- Operating Ambient Temperature
- 0 to 40 °C (32 to 104 °F)
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
- Reach Free Of Svhc
- Yes
- Mercury Free
- Yes
- Weee
- EU waste compliant
Nominal Speed1500 rpm
Continuous Stall Current19.68 A
Maximum Current Irms57.6 A
Peak Stall Torque71.62 N.m
Holding Torque48 N.m built-in
Back EMF Constant88 V/krpm 20 °C
Stator Inductance3.8 mH 20 °C
Rated Supply Voltage220 V
Shaft Length79 mm
Motor Flange Size180 mm
Net Weight28 kg
Centring Collar Diameter114.3 mm
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes200 mm
Mounting SupportAsian standard flange
Holding BrakeWith
IP Degree of ProtectionIP50 IM V3, IP65 IM B5, IM V1
RoHS Exemption InformationYes
Reach RegulationFree of SVHC above threshold
Pvc FreeYes
Country of OriginChina
