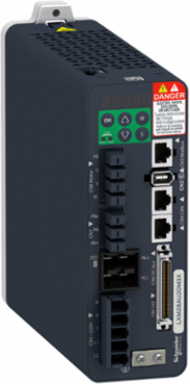

Schneider Electric LXM28AU20M3X Lexium 28 Motion Servo Drive, 2kW, 12A, IP20, 220V

  • MPN: LXM28AU20M3X
  • PPN: SCH-LXM28AU20M3X
  • UNSPSC: 39121021
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1994.12

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase), an output current of 12A, nominal power of 2kW and continuous power of 2000W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 62mm (width) x 184mm (depth) x 170mm (height). It weighs 1.7kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 4 motor stacks) at 2000W and servo motor BCH2 (100mm, 2 motor stacks) at 2000W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

    Features

    • Digital input interface to control simple movements
    • Drive embedded safety function safe torque off
    • Energy efficient
    • Embedded safety
    • Simplify integration and maintenance
    • Automatic tuning and motor identification

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina
    Depth184 mm
    Weight1870 g

    Communications & Management Attributes

    Communication InterfaceCANopen, Integrated, CANmotion, Integrated

    Complementary Attributes

    Us Rated Supply Voltage200...240 V - 10...15 %)three phase, 230 V
    Maximum Ambient Air Temperature For Operation55.0 °C
    Maximum Leakage Current1.35 mA
    Minimum Ambient Air Temperature For Operation0.0 °C
    Maximum In Rated Current12.0 A
    Line Rated Current12.0 A
    Maximum Current Irms36.0 A
    Maximum Operational Altitude3000.0 m
    Minimum Operational Altitude0.0 m

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Electrical Connectionspring terminal 3.3...4 mm², 12 AWG L1-L2), spring terminal 3.3...4 mm², 12 AWG R, S, T), spring terminal 3.3...4 mm², 12 AWG U, V, W, PE), spring terminal 3.3...4 mm², 12 AWG PA/+, PBe)
    Protection Typeagainst reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
    Status Led1 LED (Red) charge1 LED (Green) RUN, 1 LED (Red) error
    Certificate AgencyCE, cULus
    Carbon Footprint Of The End Of Life Phase C1 To C40.8548932432, 0.9 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A332 kg CO2 eq., 31.8064256757
    Local Data StatusPublishable
    Return IndicatorN
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1409001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1906
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier4
    Function OptionAdvanced
    Market SegmentationIndustrial
    Connector TypeRJ45 CN4)CANopen, CANmotion
    Control Signal Typeservo motor encoder feedback CN2
    Derating Temperature Start40.0 °C
    Drive Voltage Drop Coefficient1
    Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
    Emc Filter Compatibilitytype 022
    Format Of The Drivecompact housing
    Method Of Accessslave
    Network Number Of Phases3
    Nominal Voltage220 V three phase
    Operating Positionvertical
    Phasethree phase
    Product Or Component Typemotion servo drive
    ReturnabilityNo
    Shock Resistance10 gn, type I IEC 60721-3-3
    Software VersionEIME v5.6.0.1
    Supply Voltage200-240 V three phase
    Supply Voltage Limits200-255 V three phase
    Switching Frequency8 kHz
    Type Of Cableshielded motor cable 0-55 °C) copper
    Vibration Resistance3M4 3 mm 9-200 Hz)IEC 60721-3-3
    Database Version2016-11
    Height Nominal170 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    MarkingCE, cULus
    Safety LevelSIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012
    Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
    Carbon Footprint Of The Distribution Phase A40.2412679054, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.0181137297
    Carbon Footprint Of The Use Phase B2 B3 B4 B64 449 kg CO2 eq., 4449.2315869804
    Local Publishable Date2026-01-12
    Device TypeMotion - drive & motor
    TraceabilityYes
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id4
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Continuous Power2000 W 220 V
    Derating Altitude Start1000.0 m
    Device Short NameLXM28A
    Electrical Isolationbetween power and control
    Emc Filterwithout EMC filter
    Field Weakeningfalse
    Line Current8.7 A 137.1 % 220 V, three phase
    Network Frequency47.5...63 Hz
    Nominal Power2 kW 220 V 8 kHz
    Number Of Addresses1-127 CANopen, CANmotion
    Overvoltage CategoryIII
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductLexium 28
    Safety FunctionSTO (safe torque off), Integrated
    Signalling Functionservo status and fault codes five 7-segment display units
    Supply Frequency50/60 Hz - 5...5 %
    Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint4 482 kg CO2 eq.
    Type Of Coolingintegrated fan
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal62 mm
    Customs Code8504404000
    Functional Unit DescriptionTo control AC-servo motors BCH2 100% of the time for 10 years
    Functional Unit Unitunité (unit)
    Energy Consumption On Product Lifetime In Kwh9081.158

    Environment Attributes Main

    Ambient Air Temperature For Storage-25-65 °C, -25-65 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint4482.1522875344
    Circularity ProfileENVEOLI1409001EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Product Compatibilityservo motor BCH2 130 mm, 4 2000 Wservo motor BCH2 100 mm, 2 2000 Wservo motor BCH2 180 mm, 1 2000 W
    Relative Humidity5-95 % without condensation
    Pep Verification Date2020-11-01
    Type Of Verification For The PepIndependent internal review
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-55 °C
    Environmental DisclosureENVPEP1409001EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1409001EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phasethree phase
    Range Of ProductLexium 28
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8EC001857
    ETIM 10EC001857
    ETIM 9EC001857

    Output Attributes

    Output Current 3s Peak220 V, 36 A
    Continuous Output Current12 A 8 kHz
    Discrete Output Number5 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1)
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Logicpositive or negative CN1)
    Discrete Output Voltage12...24 V DC

    Input Attributes

    Analogue Input TypeV_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
    Discrete Input Logicpositive or negative CN1)
    Discrete Input Voltage24 V DC logic
    Analogue Input Number2
    Discrete Input Number8 programmable CN1)1 pulse train input (PTI) CN1)2 fast capture CN1)1 safety function STO CN9)
