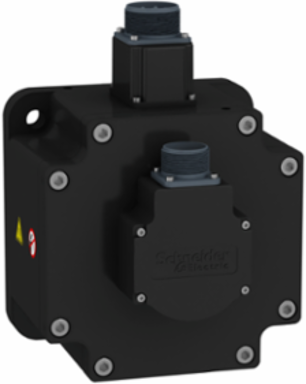

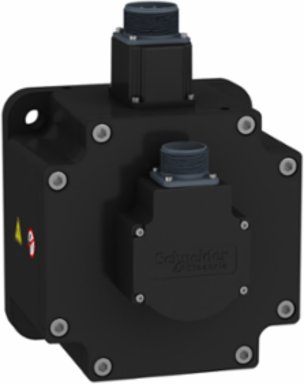

Schneider Electric BCH2MR4512CF6C Lexium 28 Servo Motor 180mm 4500W with Brake and IP65 Protection

  • MPN: BCH2MR4512CF6C
  • PPN: SCH-BCH2MR4512CF6C
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 28 Servo Motor from Schneider Electric is engineered for high performance in automation and motion control applications. With a robust power output of 4500W and a compact 180mm design, this motor is equipped with a brake mechanism and features IP65 protection, ensuring durability and reliability even in challenging environments. Ideal for precise control and efficient operation, it stands out as a vital component for systems requiring both strength and accuracy. This servo motor is designed to enhance automation processes, making it an invaluable asset for modern industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Sweden

Physical Attributes

Motor Flange Size180 mm
Shaft Length79 mm

Complementary Attributes

Maximum Current Irms57.6 A LXM28... 4.5 kW, 220 V, 61.0 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current22.8 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current22.8 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 1500 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal Torque28.65 N.m half speed, 28.65 N.m full speed, 28.65 N.m LXM28... 22.9 A, 220 V, three phase
Carbon Footprint Of The Distribution Phase [A4]3.8230007848, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1888480673, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]14 728 kg CO2 eq., 14727.5518380588
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes200 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power4500 W
Continuous Stall Torque28.65 N.m LXM28 22.9 A, 220 V, three phase
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque48 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Peak Stall Torque71.62 N.m LXM28... 22.9 A, 220 V, three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia74 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance3.8 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.46 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total279 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Nominal SpeedLXM28... 22.9 A, 220 V, three phase, 1500 rpm
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.1823350785
Carbon Footprint Of The Manufacturing Phase [A1 To A3]170 kg CO2 eq., 169.8210896861
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter114.3 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current19.68 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewith
Inertia73.99 kg.cm² of brake74.0 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter13.5 mm
Network Number Of Phases3
Number Of Motor Stacks3
Peak Nominal Torque71.62 N.m
Phasethree phase
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter35 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant19.1 ms 20 °C
Stator Resistance0.199 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint14 905 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh30059.494
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage220 V
Brake Pull-in Power49.6 W
Maximum [In] Rated Current22.8 A
Package Weight(Lbs)29.63 kg
Warranty (In Months)18

Environment Attributes Main

Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint14904.5671116754
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Product CompatibilityLXM28... servo drive 4.5 kW, 220 V, three phase
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power4500 W LXM28... 22.9 A, 220 V, three phase
Output Current 3s Peak61.0 A
Lexium 28 Servo Motor 180mm 4500W with Brake and IP65 Protection
