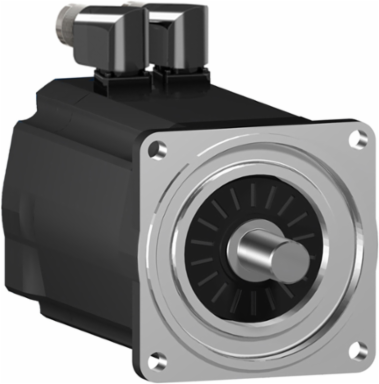

Schneider Electric SH31001P11F2000 Servo Motor 2.94 Nm, 6000 RPM, IP54/IP65, 4.8 kg
- MPN: SH31001P11F2000
- PPN: SCH-SH31001P11F2000
CAD
$3697.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SH31001P11F2000 Servo Motor is engineered for high performance in motion control applications, delivering a robust torque of 2.94 Nm at an impressive speed of up to 6000 RPM. With an IP54/IP65 rating, this motor is designed to withstand challenging environments, providing optimal protection against dust and moisture. Weighing in at 4.8 kg, it balances lightweight design with powerful functionality, making it an ideal choice for automation and control tasks that require precision and reliability. Whether you're integrating it into complex machinery or using it for simple actuation needs, this servo motor stands out as a dependable solution for sophisticated automation projects.
Documentation & Downloads
Specifications
Additional
- Nominal Speed
- 1250 rpm 115 V single phase, 2500 rpm 230 V single phase, 5000 rpm 400 V three phase, 6000 rpm 480 V three phase
- Continuous Stall Torque
- 2.94 N.m 115...480 V three phase
- Nominal Torque
- 2.91 N.m 115 V single phase, 2.64 N.m 230 V single phase, 2.27 N.m 400/480 V three phase
- Maximum Current Irms
- 12 A
- Rated Supply Voltage
- 115...480 V
- Torque Constant
- 0.84 N.m/A 120 B0C
- Maximum Radial Force
- 900 N 1000 rpm, 720 N 2000 rpm, 630 N 3000 rpm, 570 N 4000 rpm, 530 N 5000 rpm
- Torque
- 2.94 Nm
- Shaft Diameter
- 19 mm
- Key Width
- 6 mm
- Centring Collar Diameter
- 95 mm
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 115 mm
- Material
- PVC Free, Mercury Free
- Holding Brake
- With
- Stator Resistance
- 3.8 Ohm
- Number of Motor Poles
- 4
- Electrical Connection
- Rotatable right angled connector
- IP Rating
- IP54 shaft bushing without seal ring, IP65 motor and shaft bushing (IEC 60034-5)
- China RoHS
- X
- Environmental Disclosure
- ENVPEP111049EN
- Country of Origin
- Germany
- Product Type
- Servo motor
Continuous Power1190 W
Peak Stall Torque9.6 N.m 115...480 V three phase
Maximum Mechanical Speed6000 rpm
Continuous Stall Current3.5 A
PhaseThree phase
Back Emf Constant60 V/krpm 20 B0C
Maximum Axial Force160 N
Length199.5 mm
Shaft Length40 mm
Motor Flange Size100 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter9.0 mm
Net Weight4.8 kg
Encoder TypeAbsolute single turn SinCos Hiperface
Holding Torque9 N.m
Stator Inductance27.15 mH
Rotor Inertia2.018 kg.cmB2
Type of CoolingNatural convection
RoHS ExemptionYes, Pro-active compliance (out of EU RoHS scope)
REACH RegulationContains SVHC above threshold
Warranty18 months
Range CompatibilityPacDrive 3
