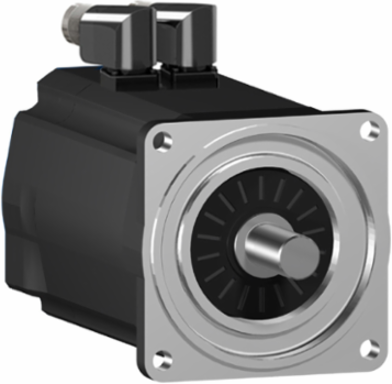

Schneider Electric SH31402P11A2100 Lexium 52 Servo Motor, 19.5 Nm, 3000 RPM, IP65, 3 Phase
- MPN: SH31402P11A2100
- PPN: SCH-SH31402P11A2100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Lexium 52 Servo Motor from Schneider Electric is engineered for robust performance in motion control applications, offering a notable torque of 19.5 Nm and a maximum speed of 3000 RPM. Designed with an IP65 rating, it ensures protection against dust and water, making it suitable for demanding environments. This 3-phase motor integrates seamlessly into automation solutions, providing the precision and reliability needed for advanced industrial processes. With its high-efficiency design, it stands out in the field of servo motors, catering to a variety of applications in automation and control.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 19.5 N.m 115-480 V three phase
- Nominal Output Power
- 1460 W 115 V single phase, 2690 W 230 V single phase, 3860 W 400 V three phase, 3660 W 480 V three phase
- Nominal Torque
- 18.6 N.m 115 V single phase, 17.1 N.m 230 V single phase, 12.3 N.m 400 V three phase, 9.7 N.m 480 V three phase
- Nominal Speed
- 750 rpm 115 V single phase, 1500 rpm 230 V single phase, 3000 rpm 400 V three phase, 3600 rpm 480 V three phase
- Continuous Stall Current
- 13.2 A
- Phase
- Three phase
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 8 mm (0.31 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm (6.50 in)
- Shaft End
- Parallel key
- Stator Resistance
- 0.6 Ohm
- Number Of Motor Poles
- 5
- Back EMF Constant
- 101 V/krpm 20 °C
- IP Degree Of Protection
- IP65 motor and shaft bushing conforming to EN/IEC 60034-5
- Holding Brake
- Without
- Electrical Connection
- Rotatable right angled connector
- Range Compatibility
- PacDrive 3
- Product Or Component Type
- Servo motor
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Weee
- Must be disposed of per EU waste regulations
- Environmental Disclosure
- ENVPEP111049EN
- Circularity Profile
- N/A
Continuous Power3900 W
Peak Stall Torque60.1 N.m 115-480 V three phase
Maximum Speed4000 rpm
Maximum Current Irms44.1 A
Rated Supply Voltage115-480 V
Length272.5 mm (10.73 in)
Shaft Length50 mm (1.97 in)
Motor Flange Size140 mm (5.51 in)
Centring Collar Depth3.5 mm (0.14 in)
Mounting Holes Diameter11 mm (0.43 in)
Net Weight16.6 kg (36.6 lb)
MaterialNot specified
Stator Inductance11.225 mH
Torque Constant1.47 N.m/A 120 °C
Rotor Inertia12.68 kg.cm²
ComplianceEN/IEC 60034-5, REACh, RoHS, Mercury free, PVC free
Mounting SupportInternational standard flange
Type Of CoolingNatural convection
Device Short NameSH3.....P
Sustainable Offer StatusGreen Premium product
Mercury FreeYes
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationContains SVHC above threshold
Warranty18 months
