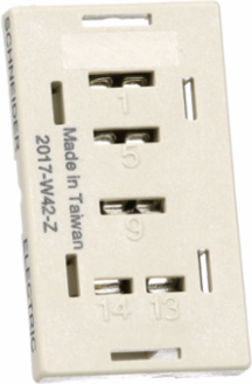

Schneider Electric 70-781T-1 Socket, SE Relays general purpose relay accessory, SPDT, 10A, 300 V, 5 pins, pins for printed circuit board, 781R series
- MPN: 70-781T-1
- PPN: SCH-70-781T-1
CAD
$5.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Legacy general purpose relay series accessory , optional socket for 781R series relays with SPDT configuration contacts rated 10A at 300V. Printed circuit boards terminals 5 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 31 mm |
|---|
Complementary Attributes
| Line Rated Current | 10 A 300 V15 A 150 V |
|---|
Important Information Attributes
| Certificate Agency | UL, CE |
|---|---|
| Local Publishable Date | 2026-01-31 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Contact Terminal Arrangement | mixed |
| Fixing Mode | by screws printed circuit boards |
| Number Of Terminals | 5 |
| Product Or Component Type | socket |
| Returnability | Yes |
| Switch Function | SPDT |
| Width Nominal | 18. mm |
| Connections - Terminals | pin pins for printed circuit board, 16 AWG |
| Package Weight(Lbs) | 4.536 g |
| Warranty (In Months) | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NC + 1 NO |
| Flame Retardance | UL94-V0 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2202006EN |
| [Ue] Rated Operational Voltage | 300 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536698000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2202006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | relay 781XAXR |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-105 °C, -40-105 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2202006EN |
General Attributes
| Product Or Component Type | socket |
|---|
| Range Of Product | Legacy |
|---|
