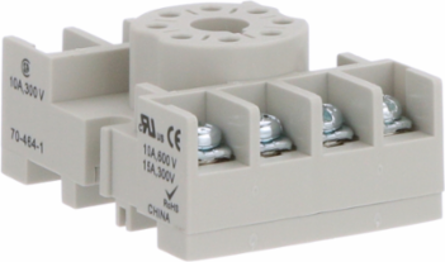

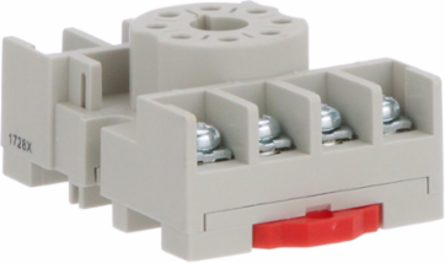

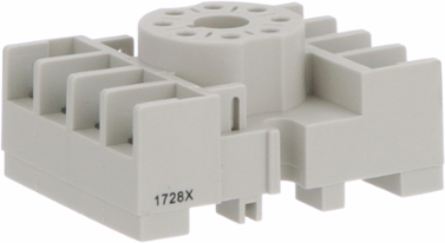

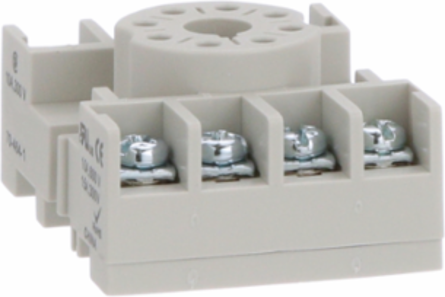

Schneider Electric 70-464-1 Socket, General Purpose Relays, for 750H/750 relays, DPDT, 8 pins, screws clamp terminals, 10...15A, 300...600V
Schneider Electric 70-464-1 Socket, General Purpose Relays, for 750H/750 relays, DPDT, 8 pins, screws clamp terminals, 10...15A, 300...600V
- MPN: 70-464-1
- PPN: SCH-70-464-1
- UNSPSC: 39122335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$12.14/ EA
Description
Legacy general purpose relay series accessory , optional socket for 750/750H series relays with DPDT configuration contacts rated 10A to 15A at 300V/600V. Screw clamping connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Features
- Compatible with plug in control relay Schneider Electric
- It is flexibility design for space-saving
- Easy installation and connect to the relay from its socket
- Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 10 A, 15 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- by screw M3.5, M3.5 panel, clip-on 35 mm DIN rail
- Carbon Footprint Of The Distribution Phase A4
- 0.0139680798, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Connections Terminals3
- screw clamp terminals solid for output, screw clamp terminals stranded for output
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Flame Retardance
- UL94-V0
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shape Of Screw Head
- combination roundhead
- Switch Function
- DPDT
- Ue Rated Operational Voltage2
- 300...600 V
- Stocking Flag
- Y
- Pep Code
- ENVPEP2202006EN
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torquescrew < 1 N.m, screw < 0.8 N.m
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0944970906
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.4772069825
Connections Terminalsscrew clamp terminals solid for output, screw clamp terminals stranded for output
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Contacts Type And Composition2 NO + 2 NC
Package Weight Lbs36 g
Product Or Component Typesocket
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Medium DescSocket, General Purpose Relays, for 750H/750 relays, DPDT, 8 pins, screws clamp terminals, 10...15A, 300...600V
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US
Contact Terminal Arrangementmixed
Ue Rated Operational Voltage5300...600 V
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C
- Environmental Disclosure
- ENVPEP2202006EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Product Compatibilityrelay 750XBXR, relay 750XBXH
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.585672153
Ambient Air Temperature For Storage-40-105 °C
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2202006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- socket
Range Of ProductLegacy
Specifications
- Depth
- 57 mm
