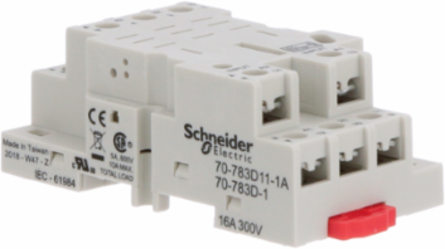

Schneider Electric 70-783D11-1A Socket, SE Relays general purpose relay accessory, 3PDT, 16A, 300 V, 11 pins, screw clamping terminal, 784 series
- MPN: 70-783D11-1A
- PPN: SCH-70-783D11-1A
CAD
$25.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Legacy general purpose relay series accessory , optional socket for 784 series relays with 3PDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 11 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 57 mm |
|---|
Complementary Attributes
| Line Rated Current | 16 A |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL, CSA, CE |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0192061097, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 3 NO + 3 NC |
| Flame Retardance | UL94-V0 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Shape Of Screw Head | combination roundhead |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.8 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Width Nominal | 40 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Connections - Terminals | screw clamp terminals solid for output, screw clamp terminals stranded for output |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1299334996 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.656159601 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contact Terminal Arrangement | mixed |
| Fixing Mode | by screw M3.5, M3.5 panelclip-on 35 mm symmetrical rail |
| Number Of Terminals | 11 |
| Product Or Component Type | socket |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Switch Function | 3PDT |
| Pep Code | ENVPEP2202006EN |
| Pep Verification Date | 2023-01-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| [Ue] Rated Operational Voltage | 300 V |
| Package Weight(Lbs) | 55.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Product Compatibility | relay 783XCXsuppressor module 70-ASMMdiode 70-ASMDsignalling device 70-ASMLG, suppressor module 70-ASMR |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202006EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-01-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-105 °C, -40-105 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.8052992103 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2202006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | socket |
|---|
| Range Of Product | Legacy |
|---|
