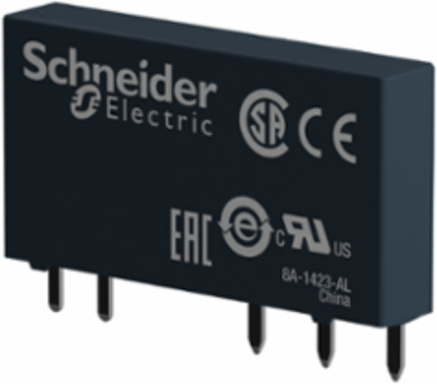

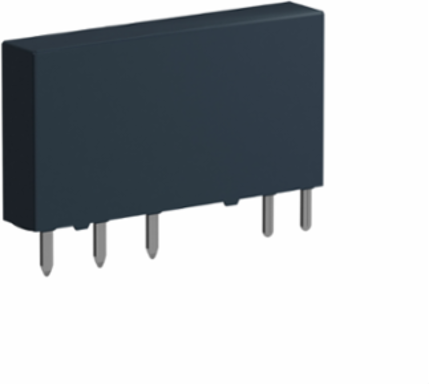

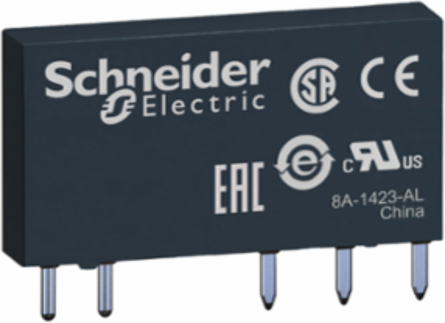

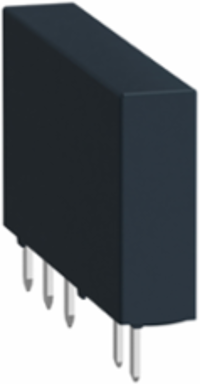

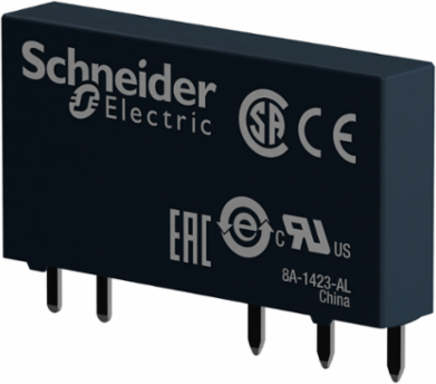

Schneider Electric RSL1AB4ED Slim Interface Relay, 6A, 1 C/O, 48V DC, 5mm Width
- MPN: RSL1AB4ED
- PPN: SCH-RSL1AB4ED
CAD
$11.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Spain, France
Depth18.5 mm
Complementary Attributes
- Maximum Switching Capacity
- 1500 VA, 50 W
- Line Rated Current
- 6 A
- Minimum Switching Capacity
- 120 mW
- Minimum Switching Voltage
- 12 V
Control Circuit TypeDC
Maximum Switching Voltage277 V
Minimum Switching Current10 mA
Rated Operational Voltage Limits36...67.2 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Operation
- standard, standard
- Operating Time
- 5 ms reset, 12 ms
- Vibration Resistance
- +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Control Circuit Type2
- DC
- [Uc] Control Circuit Voltage
- DC, 48 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.000774129, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0000362786
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 2.136386116
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.21 W
- Compatibility Code
- RSL
- Contacts Type And Composition
- 1 C/O
- Dielectric Strength
- 1000 V AC between contacts4000 V AC between coil and contact
- Load Current
- 6 A 250 V AC 0.5 mm mounting distance
- Mounting Support
- socket or PCB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Category
- RT III
- Relay Type
- slim interface relay
- Safety Reliability Data
- B10d = 60000
- Shape Of Pin
- flat (PCB type)
- Status Led
- without
- Test Levels
- level A group mounting
- Pep Code
- ENVPEP2502015EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 28 mm
- [Ie] Rated Operational Current
- 6 A AC-1/DC-1)IEC/UL
- [Ui] Rated Insulation Voltage
- 250 V IEC277 V cUL
- Drop-out Voltage Threshold
- >= 0.05 Uc>= 0.05 Uc
- Package Weight(Lbs)
- 5.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Shock Resistance5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Control Circuit Voltage48 V
Certificate AgencyUL, EAC, CSA
Terminals Description Iso N°1(A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.001531206, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1872732939
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2353
China Rohs In ScopeYes
Phenolic Free SolutionYes
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance10600 Ohm at 23 °C +/- 15 %
Contacts Materialsilver alloy (AgSnO2)
Control Typewithout lockable test button
Electrical Durability60000 cycles, 6 A at 250 V, AC-1 C/O
Mechanical Durability10000000 cycles
Operating Positionany position
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
ReturnabilityNo
Series NameRSL series
Software VersionEIME v5.7.0.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %70
Width Nominal5 mm
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
[Uimp] Rated Impulse Withstand Voltage6 kV IEC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410020
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 2.3260010234
- Environmental Disclosure
- ENVPEP2502015EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Toxic FreeYes
Ambient Air Temperature For Operation-40-55 °C-40-55 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2502015EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
