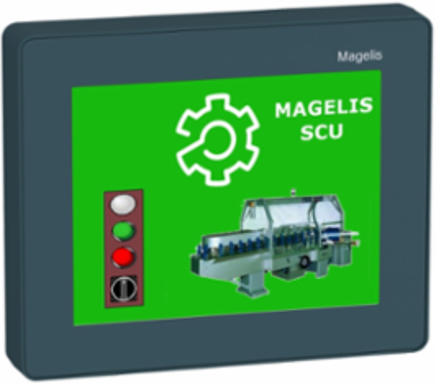

Schneider Electric HMIS65W Harmony SCU Small Touchscreen HMI 3.5 Inch TFT LCD, 320x240 Resolution
- MPN: HMIS65W
- PPN: SCH-HMIS65W
- UNSPSC: 43211506
CAD
$389.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The HMIS65W Harmony SCU Small Touchscreen HMI from Schneider Electric offers a compact and user-friendly interface for industrial applications. Featuring a 3.5-inch TFT LCD screen with a resolution of 320x240, this human-machine interface enables intuitive navigation and control of processes, making it an ideal choice for operators seeking efficiency and clarity in their interactions. Designed with reliability in mind, it brings cutting-edge technology to the forefront, ensuring that essential data is easily accessible in a durable, touch-responsive format.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 80 mm |
| Weight | 250 g |
|---|
Physical Attributes
| Display Size | 3.5 inch |
|---|
Important Information Attributes
| Character Font | Korean, ASCII, Taiwanese (traditional Chinese), Chinese (simplified Chinese), Japanese (ANK, Kanji) |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.0322556391, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.002107218, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 108 kg CO2 eq., 107.7958095238 |
| Local Publishable Date | 2026-01-12 |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2101003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Display Type | backlit LED colour TFT LCD |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony SCU |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 143 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Certificate Agency | UKCA |
| Customs Code | 8538908180 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| View Angle Horiz X Vert | 60° left, 60° right40° top, 60° bottom |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0751729323 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 35 kg CO2 eq., 35.2906015038 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Brightness | 16 levels via touch panel |
| Pixel Resolution | 320 x 240 pixels QVGA |
| Product Or Component Type | small touchscreen display HMI |
| Returnability | No |
| Sustainable Packaging | No |
| Touch Panel | analogue |
| Database Version | 2016-11 |
| Width Nominal | 97.6 mm |
| Nbr. Of Units In Pkg. | 1 |
| F Gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Silicone Free | No |
| Functional Unit Description | To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 140.16 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 143.195946817 |
| Environmental Disclosure | ENVPEP2101003EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2101003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| F Gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogene Performance | Product contains halogen above thresholds |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Circularity Profile | ENVEOLI2101003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-01-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | small touchscreen display HMI |
|---|
| Range Of Product | Harmony SCU |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|---|
| ETIM 10 | EC001412 |
| ETIM 9 | EC001412 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
