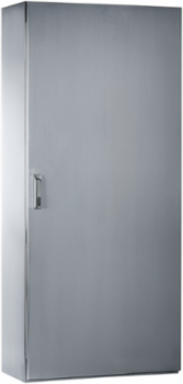

Schneider Electric NSYSMX201250 Spacial SMX 304L Stainless Monobloc Enclosure 2000x1200x500mm

MPN: NSYSMX201250
PPN: SCH-NSYSMX201250

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

This monobloc enclosure from Schneider Electric is expertly crafted from durable 304L stainless steel, ensuring robust protection for sensitive equipment used in automation and control systems, as well as data and communication environments. With generous dimensions of 2000x1200x500mm, it provides ample space for housing essential IT components securely. Designed not only for resilience but also with functionality in mind, this enclosure is suitable for a variety of applications, serving as a reliable safeguard in demanding industrial settings. Whether you are looking to organize your IT infrastructure or enhance your control setup, this enclosure stands out for its quality construction and adaptable design.

Specifications

Product Type: Compact enclosure

IK Degree of Protection: IK10 IEC 62262

Warranty: 18 months

Device Application: Multi-purpose

Material: Body and door 304L stainless steel, handle zamak, hinge stainless steel

Nominal Width: 1200 mm

IP Degree of Protection: IP55 IEC 60529

Door Type: Solid

Lock Type: 3 points lock, handle with 5 mm double-bar insert

Mounting Plate Description: Without mounting plate

Net Weight: 180 kg (396.83 lb)

Product Certifications: CAN/CSA 22, UL 508

RoHS Compliance: Pro-active compliance, product out of EU RoHS legal scope

Device Composition1 body, 2 doors, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate brackets

Type of Gland PlatePlain

StandardsIEC 62208

Mounting TypeFloor-standing

Nominal Height2000 mm

Nominal Depth500 mm

Number of Doors2

Door Opening SideReversible 120°

Accessibility for OperationFront

Surface FinishScotch-Brite brushed enclosure, painted handle

Environmental CharacteristicCorrosive, Specific hygiene

Mercury FreeYes

Country of OriginBulgaria
